7
No tools are needed for installation or removal of both bearings. Grease the bearing
surfaces before installation.
For more information on the installation of the headset bearings see section 12 in this manual.
WARNING! Burrs and sharp edges can damage the carbon and alloy surfaces
of the components. Any deep scratches or gouges in the stem or fork can
weaken the components.

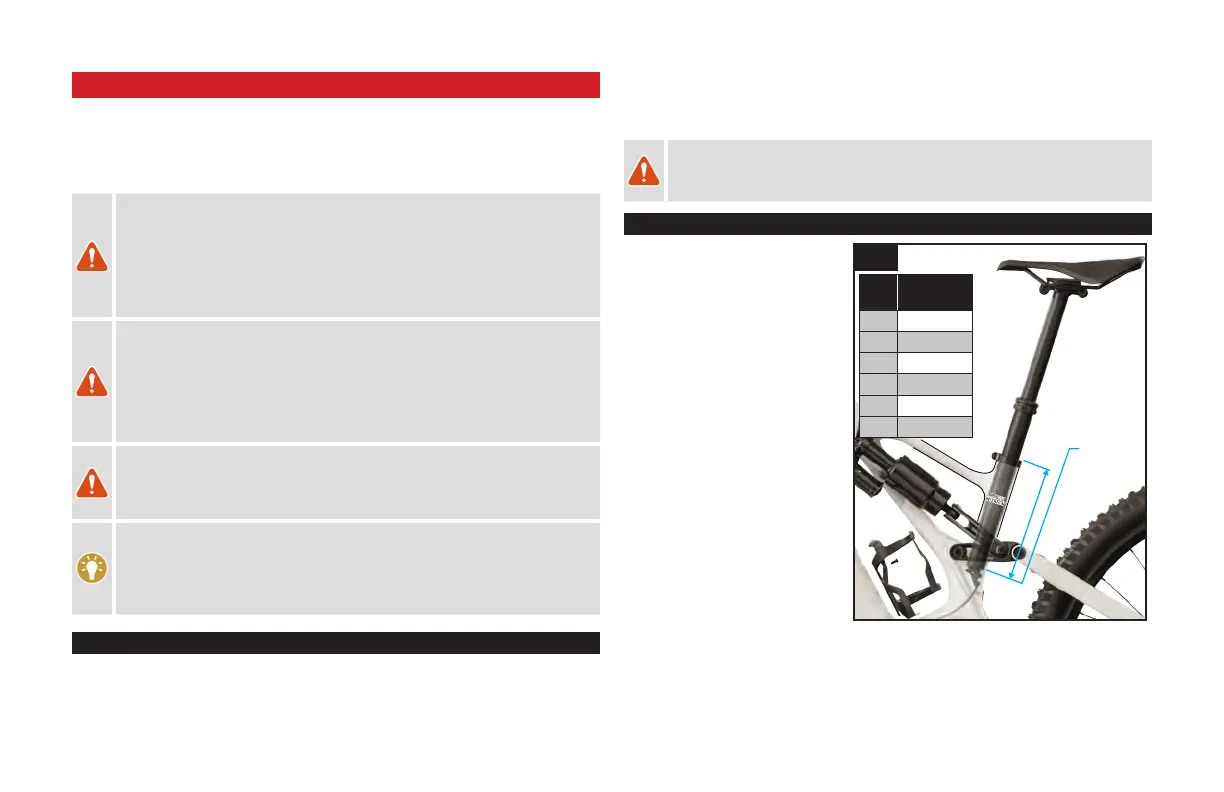

6.2. SEATPOST
SEATPOST MINIMUM INSERTION:
Both the frame and seatpost have
minimum insertion requirements. In
addition, the frame has a maximum
insertion requirement to prevent damage
to the frame and seatpost.
MINIMUM INSERTION: The seatpost
must be inserted into the frame deep
enough so the minimum insertion/
maximum extension (min/max) mark
on the seatpost is not visible. The
frame requires a minimum of 100 mm
of insertion.
MAXIMUM INSERTION: The seat
tube is reamed to a specified
maximum insertion depth for each
frame size. This ream depth limits
the insertion depth of the seatpost.
Please refer to the table in Fig.6.1.
If the desired seat height cannot be
achieved within the minimum and maximum insertion requirements, the seatpost should be
replaced for a shorter or longer one.
Once the saddle height is determined, torque the seatpost collar bolt to 55 in-lbf / 6.2 Nm.
6. GENERAL NOTES ABOUT ASSEMBLY
This manual is not intended as a comprehensive assembly, use, service, repair or maintenance
guide. Please see your Authorized Specialized Retailer for all service, repairs or maintenance.
Your Authorized Specialized Retailer may also be able to refer you to classes, clinics or books
on bicycle use, service, repair, and maintenance.
WARNING! Due to the complexity of the Levo bicycle, proper assembly
requires a high degree of mechanical expertise, skill, training and specialty
tools. Therefore, it is essential for your safety that the assembly, maintenance
and troubleshooting be performed by an Authorized Specialized Retailer.
Before your first ride, make sure your components, such as brakes and
drivetrain, are assembled and adjusted in accordance with the manufacturer’s
instructions and are functioning properly.
WARNING! Many components on the Levo, including, but not limited to
the motor, battery and cable guides, are proprietary to the Levo. Only use
originally supplied components and hardware at all times. Use of other
components or hardware will compromise the integrity and strength of the
assembly. Levo specific components should only be used on the Levo and not
on other bicycles, even if they fit. Failure to follow this warning could result in
serious injury or death.
WARNING! Never modify your frame or bicycle in any way. Do not sand, drill,
file or remove parts from your bicycle. Do not install incompatible components
or hardware. Failure to follow this warning may result in serious personal
injury or death.
WARNING! Electrical components can be exposed when working on your
bicycle. Do not touch any part of the electrical system while under electric
charge. Do not expose the connections of the battery and frame to water. If
any live components or the battery are damaged, stop riding immediately and
bring your bicycle to your Authorized Specialized Retailer.
6.1. HEADSET BEARINGS
The headset uses a 1 1/8” (42 mm x 30.5 x 8 mm, 45 x 45°) Campagnolo Standard
compatible upper bearing and a 1.5” (52 mm x 40 x 7 mm, 45 x 45°) lower bearing. Ensure
that replacement bearings are compatible with the Specialized headset specification.
6.1
SIZE
MAX
INSERTION
S1
210
S2
220
S3
240
S4
260
S5
280
S6
295
MAX
