18
Figure 4.11
Figure 4.12
Figure 4.13
Figure 4.14

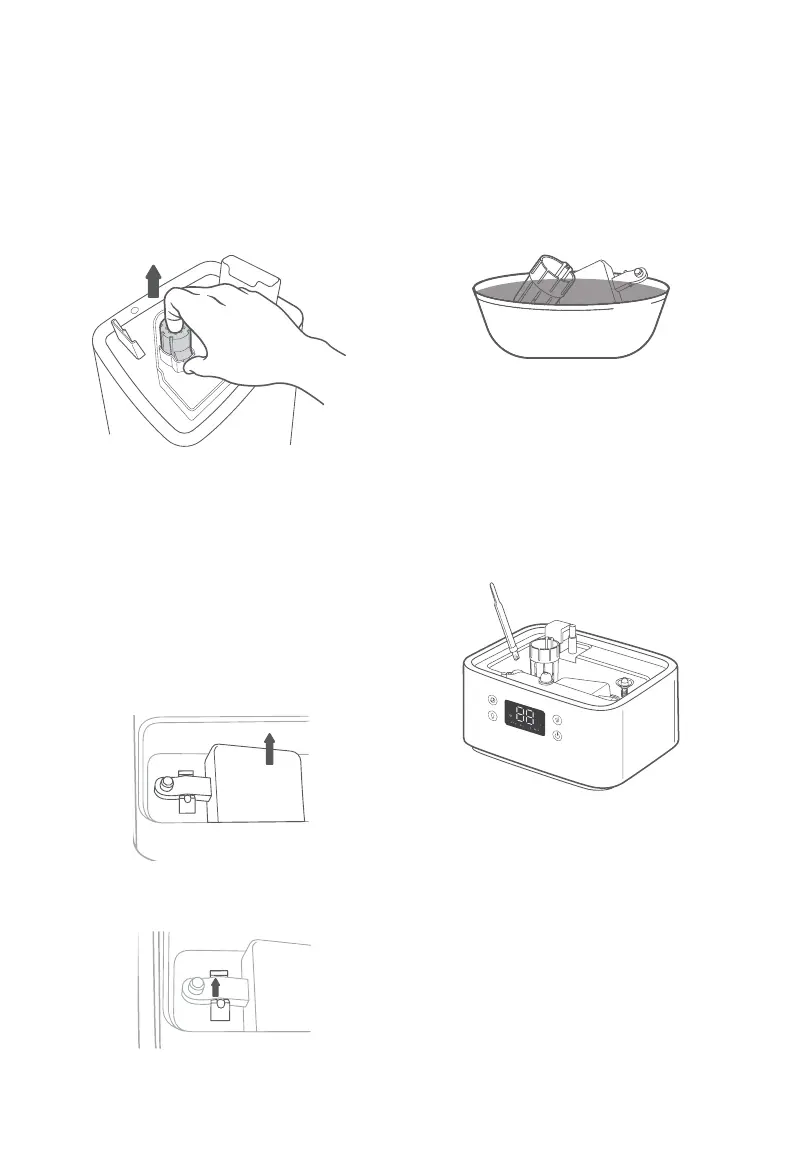

g. Remove the float from the base
chamber by pulling up the larger
side of the float [
Figure 4.12
] and
pulling the shaft out from the float
brackets. One side of the float
brackets is open (U-shaped) to
allow the shaft to be removed.
[
Figure 4.13
]
f. Flip the tank over and remove
the noise silencer. To remove the
noise silencer, press the release
tab and gently pull away from the
humidifier. [
Figure 4.11
]
h. Place the float, water filter, and
noise silencer in a small container.
Fill with enough vinegar to cover
them. Soak for 15–20 minutes.
[
Figure 4.14
]
e. Remove the tank, remove the tank
cover, and pour out any vinegar.
[
Figure 4.10
]
Cleaning (cont.)
Figure 4.10
