Lewmar Fish 700 - 1- Introduction; Product Support; CE Approvals; Important Information About This Manual

2
1- Introduction
Thank you for choosing Lewmar. Lewmar products are world renowned for their quality, technical
innovation and proven performance. With a Lewmar product you will be provided with many years of
outstanding service.
Product support
Lewmar products are supported by a worldwide network of distributors and Authorised Service Repre-
sentatives. If you encounter any difficulties with this product, please contact your national distributor,
or your local Lewmar dealer.
CE Approvals
For CE approval certicates contact Lewmar.
Important information about this manual
Throughout this manual, you will see safety and product damage warnings.
You must follow these warnings carefully to avoid possible injury or damage.

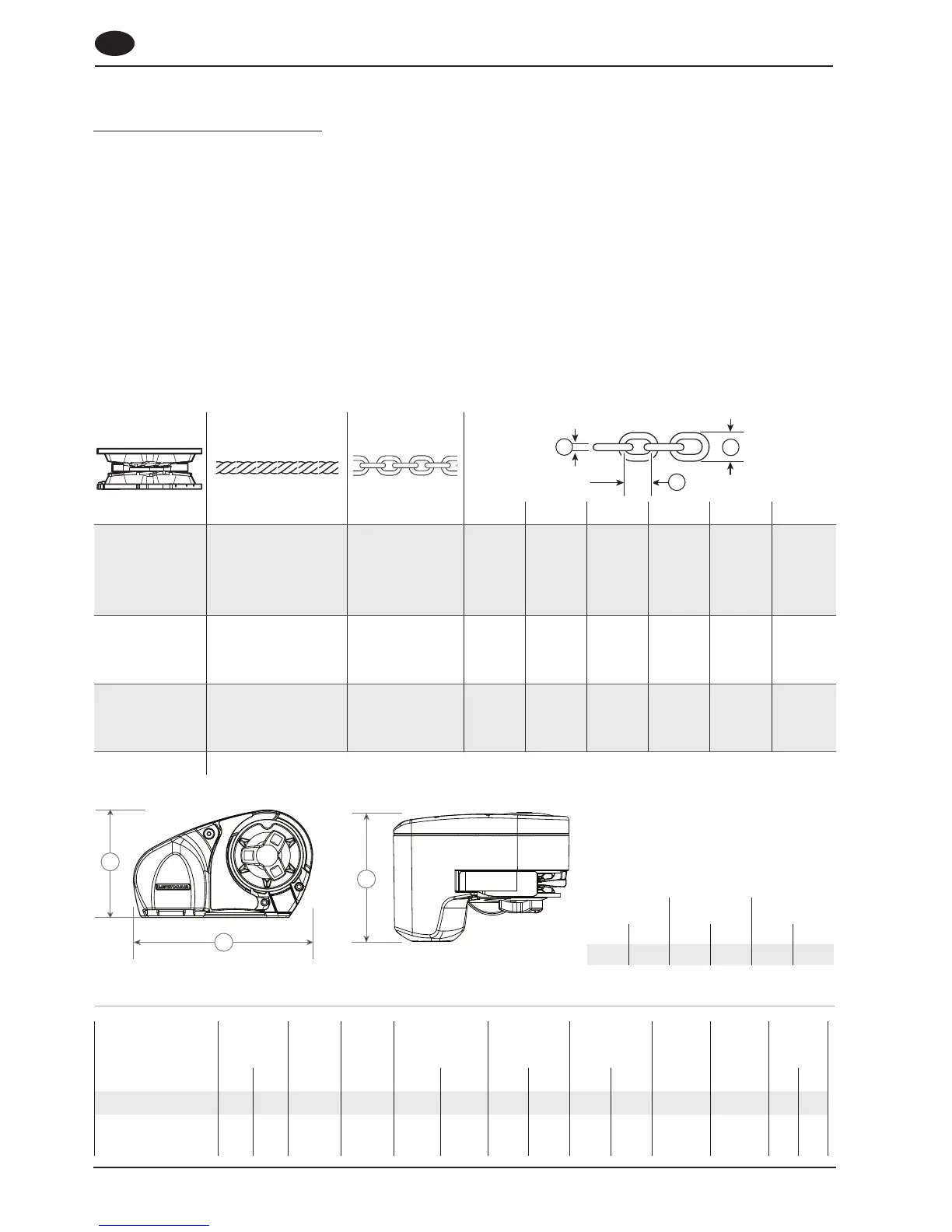

2- Specication
A
B
C
P
W
D
D (mm) D (inch) P (mm) P (inch) W (mm) W (inch)
Dual Gypsy
12 mm (
1
/
2
”)
3 Strand and 8 Plait
6mm DIN 766 6 0.236 18.5 0.728 20.4 0.803
7 mm DIN 766 7 0.276 22 0.866 23.8 0.937
1
/
4
” ISO G4 7 0.276 21.3 0.840 24.4 0.962
1
/
4
” BBB 7.14 0.281 22.1 0.870 25.2 0.992
RC0860
Gypsy No. 504
14-16 mm (
9
/
16
”-
5
/
8
”)
3 Strand and 8 Plait
(
5
/
8
” only)
8 mm DIN 766 8 0.315 24 0.945 27.2 1.070
8 mm ISO 4565 8 0.315 24 0.945 28.8 1.134
5
/
16
” BBB 8.73 0.343 25.4 1.000 30.1 1.186
RC0864
Gypsy No. 516
14-16 mm (
9
/
16
”-
5
/
8
”)
3 Strand and 8 Plait
(
5
/
8
” only)
8 mm DIN 766 8 0.315 24 0.945 27.2 1.070
8 mm ISO 4565 8 0.315 24 0.945 28.8 1.134
5
/
16
” ISO G4 8.36 0.329 26.16 1.030 28.4 1.118
Pb Gypsy 14-16 mm Lead-core line
Electric specications
A B C
mm in mm in mm in
146 5
3
/
4
245 9
5
/
8
178 7
MODEL MAX CHAIN
MOTOR
SUPPLY
MOTOR
POWER MAXIMUM PULL
MAXIMUM
LINE SPEED
WORKING
LOAD LIMIT
NORMAL
CURRENT
DRAW
CIRCUIT
BREAKER WEIGHT
mm in Voltage Watt kg lb m/min. ft/min. kg lb Amp Amp kg lb
Pro-series/Fish 700 7 1/4 12 500 320 700 32 105 79 175 35 50 8.5 19
Pro-series/Fish 1000
Pro-Fish Pb
8 5/16 12 700 454 1000 32 105 114 250 50 70 9.5 21
GB
