Lewmar Fish 700 - Wiring Diagram (Contactor Provided)

Lewmar Pro-Series/Fish windlass ref B10414 iss.1 | 7

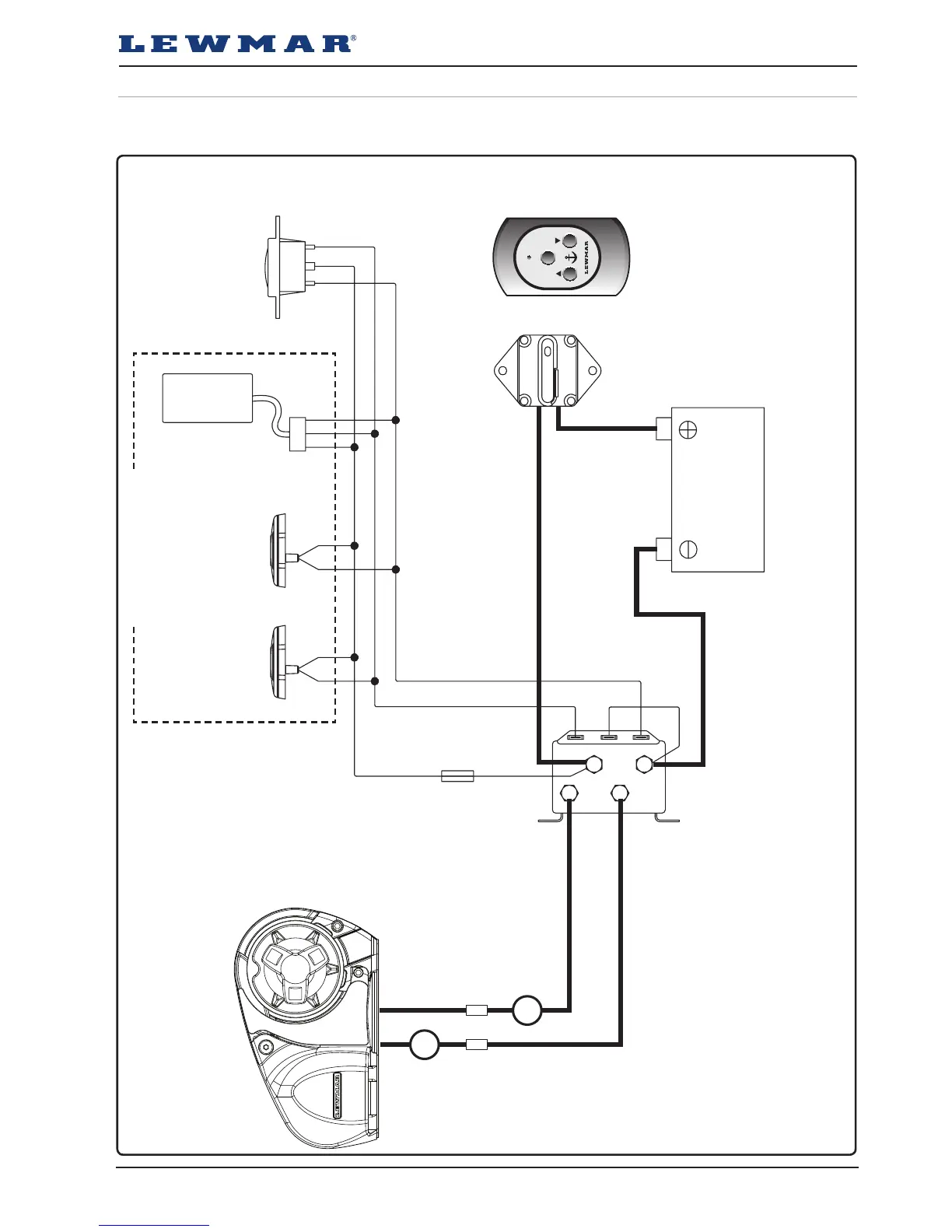

5.4 Wiring diagram using contactor provided (Part No 68000939)
Installation instructions are supplied separately with any accessories.
ON
A
B
Electric Switches
UP DOWN
Remote Handheld Control
Rocker Switch
(68000593)
UP DOWN
Circuit Breaker
(See § 4.2)
Battery
12 VDC
Contactor
(68000939)
Fuse
3 A
Cable Colours A = Black B = Red Switch wire thickness: 1.5 mm
2
(16 AWG)
Optional accessories
Optional Wireless
Control Available
(See § 5.3)
