Lewmar Pro-Series/Fish windlass ref B10414 iss.1 | 5

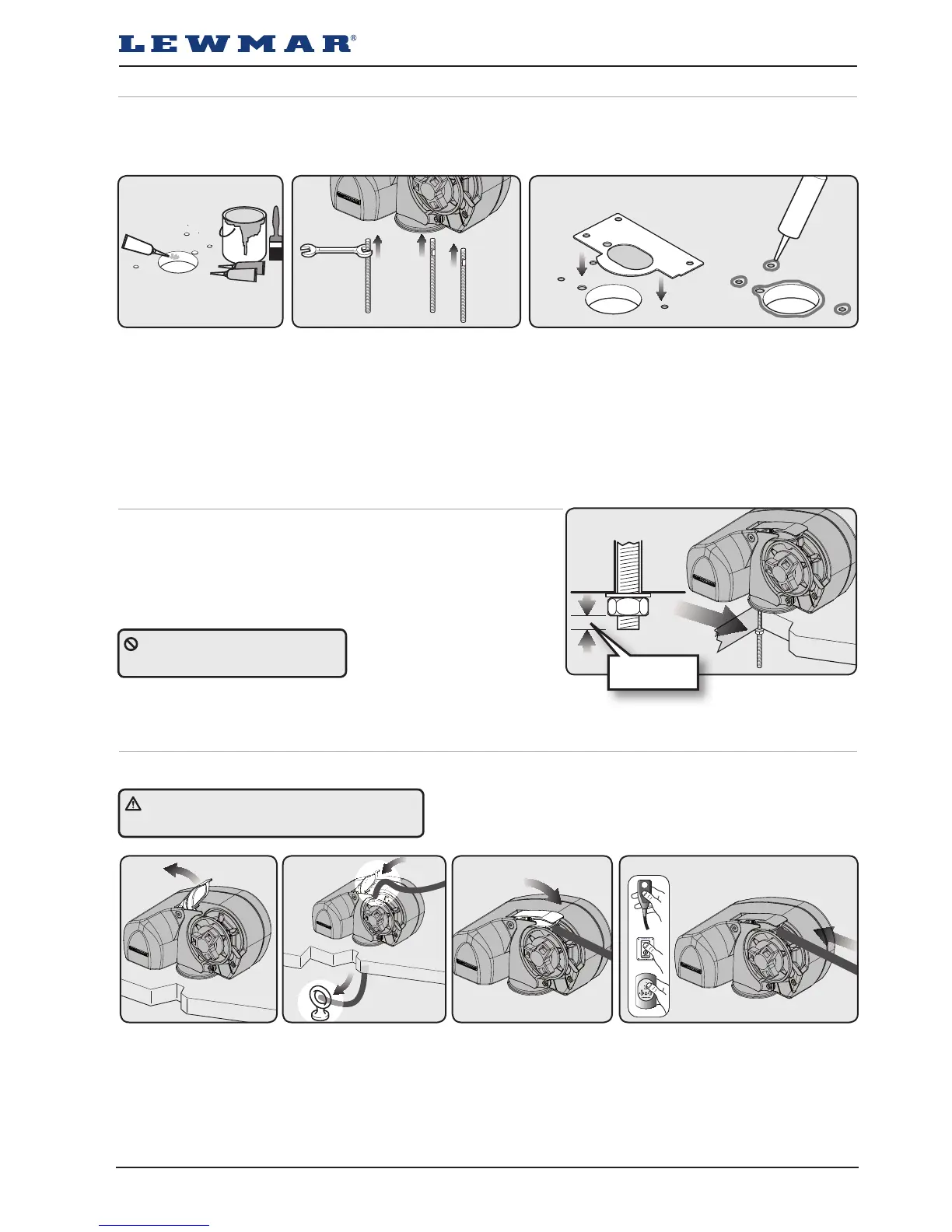

4.6 Above deck tting
Using the template and after you have checked all the above and below deck requirements cut the
following holes:
Using a 10mm (
3
/
8
”) diameter drill bit, make the three holes for the mounting studs and two for the
motor cables. With a 76mm (3”) diameter hole saw, make one hole for the rode to pass through.
1. When all the holes have been made, remove the template. To help avoid water absorption by the
deck, apply an appropriate marine sealant to the freshly cut hole edges.
2. Assemble and tighten studs into base until they bottom out in their holes. Studs have a at for
spanner location. Position the ats of the studs nearest the base of the windlass.
3. Place the base mat in position on the deck. Optionally, apply a suitable sealant to the base of the
windlass, any mounting pad or around the studs.
21 3
4.7 Under deck fastening
1. Fit windlass to deck. Trim the studs back to 6mm (
1
/
4
”)
below the fully tightened nuts to prevent snagging anchor
rope/chain if necessary.
• NOTE: If using silicone or other rubbery type sealant,
it is advisable to allow curing of the sealant before nal
tightening of the mounting nuts.
6mm -
1
/
4
”
4.8 Loading rope/chain
For safety and performance Lewmar recommends the use of matched Lewmar anchor rodes.
1
2
3 4
DO NOT use a permanent
adhesive/sealant eg.5200
WARNING! Isolate (turn off) the
windlass using circuit breaker / isolator.
1. Pull out control arm.
2. Feed anchor rope/chain into entry hole. Tie off to suitable strong point in the anchor locker.
3. Align rope/chain in gypsy. Release control arm and wrap rope/chain around gypsy.
4. Turn on the breaker and power load rest of anchor rope/chain.
