Lewmar Fish 700 - Wiring Diagram (Contactor Box)

8

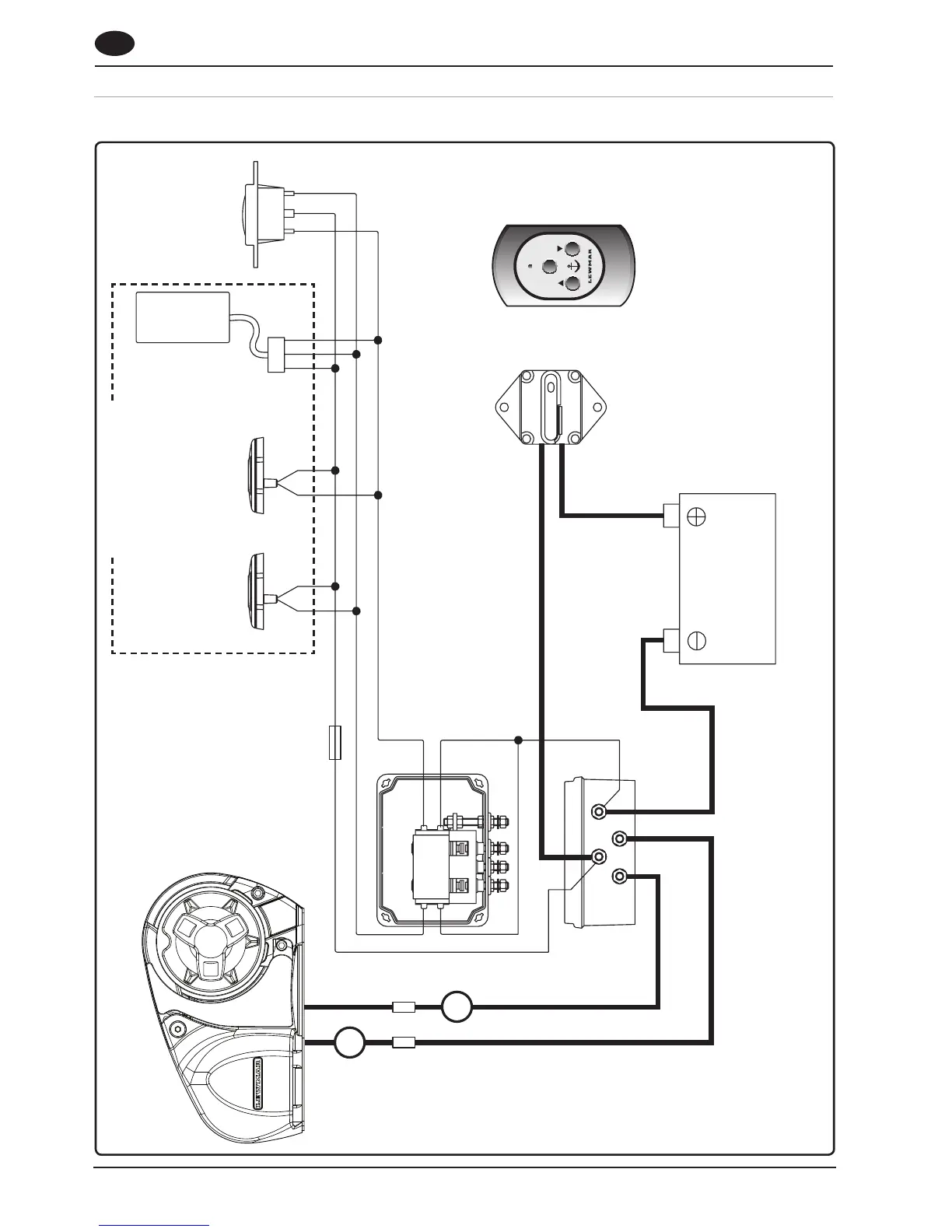

5.5 Wiring diagram if a contactor box (Part No 68000965) is used
Installation instructions are supplied separately with any accessories.
ON
A
B
Circuit Breaker
(See Chart)
Battery
12 VDC
Contactor Box
(68000965)
Fuse
3 A
Rocker Switch
(68000593)
UP DOWN
Remote Handheld Control
Electric Switches
UP DOWN
Cable Colours A = Black B = Red Switch wire thickness: 1.5 mm
2
(16 AWG)
Optional accessories
Optional Wireless
Control Available
(See § 5.3)
GB
