Lewmar V1 User Manual
4
of 1
of 1 rating
40 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

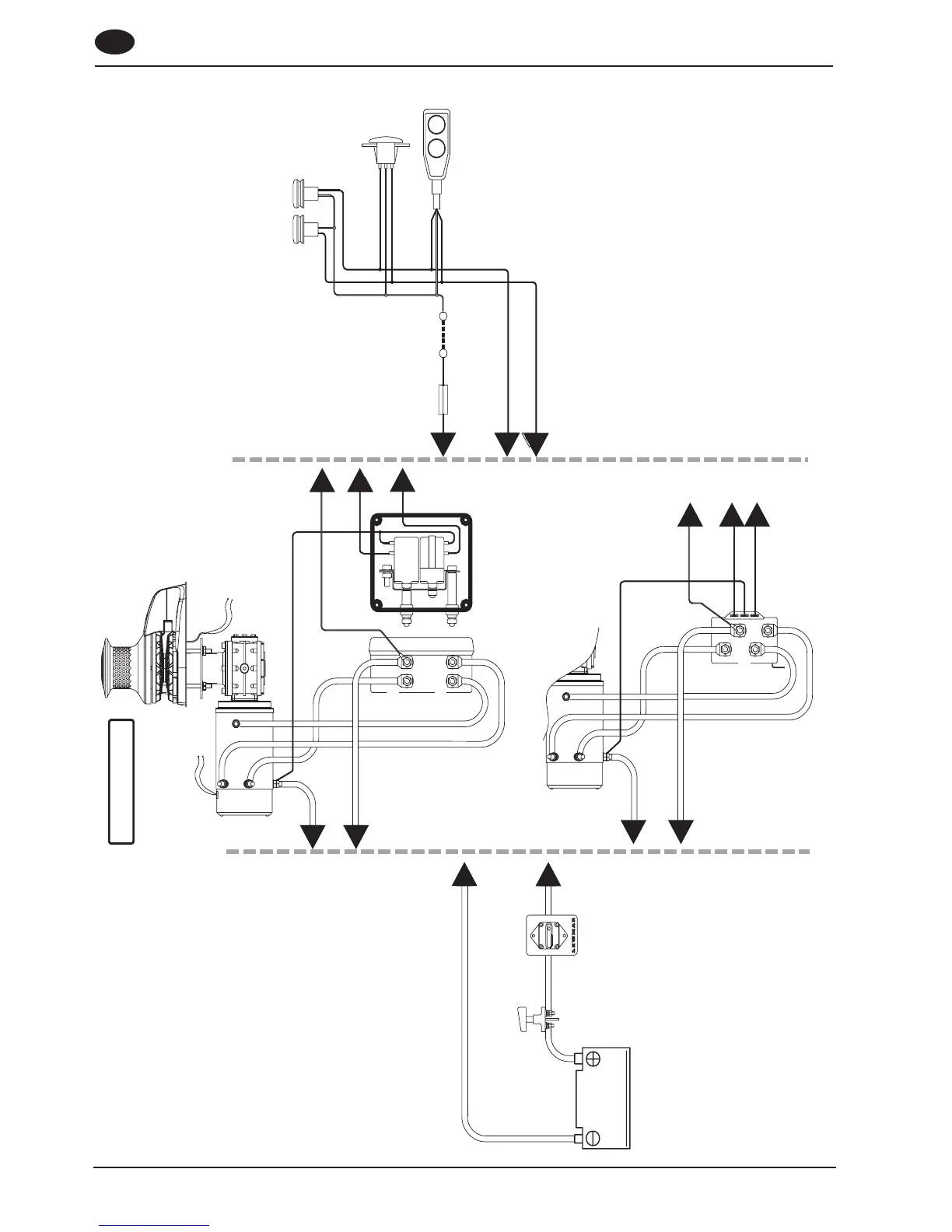

14
Circuit Breaker
Battery
Isolator
Battery
12/24 VDC
Electric Deck
Switches
Rocker
Switches
Electric Remote
Contr
ol
Thermal
Switch
Fuse
3 A
4
5
4
5
4
5
1
2
3
1
2
3
UP
DOWN
UP
DOWN
Contr
ol Box
Contactor
1
2
3
V4
2
1
−V
BA
T
T +VE
MOT
OR
F2
MOT
OR
F1
F2
A1
A2
A
F1
BA
T
T +VE
MOT
OR
F2
MOT
OR
F1
A
F2
A1
A2
F1
Reed Switch Sensor
for Chain Counter
(If tted)
Thermal
Switch
(IF tted)
GB
13
15
Table of Contents
Product Support
2
Windlass General
3
Fitting
3
Electrical
3
Specifications
4
Installation
4
Basic Requirements
4
Accessories
4
Gypsy Suitability
5
V1-6 above Deck Preparation
5
V1-6 Deck Thickness
6
V1-6 below Deck Preparation
7
V1-6 above Deck Fitting
8
V1-3 under Deck Fitting
9
V4-5 under Deck Fitting
9
V6 under Deck Fitting
10
V1-6 Loading Rope/Chain
10
Electrical Wiring
11
Electric Cable Selection
11
Wiring
11
Electric Motor Terminal Connections
11
Control Switch Installation
12
V1-6 Wiring Diagram
13
Hydraulic System
16
Hydraulic Motor/Gearbox
16
Hose Types
16
Motor Ports - Standard Motor/Gearbox
17
Operation
17
V1-6 Braked Anchor Free-Fall
17
Power Up/Down
18
To Release Anchor
18
To Retrieve Anchor
18
V1-3 Manual Recovery
19
Gypsy/Drum Versions
19
V2-6 Independent Warping
20
Operating Tips
21
Servicing
22
Servicing Schedule
22
V1-6 Gypsy Replacement/Service
22
Manual Recovery Gypsy Replacement
23
Gypsy/Drum Replacement
23
V1-5 Control Arm Replacement/Service
23
V1-3 Fall-Safe Pawl and Lever Replacement/Service
23
V1 Exploded View
24
V2 & V3 Exploded View
26
V4 & V5 Parts List
28
V6 Parts List
30
V1-3 Dimensions
32
V4-5 Dimensions
33
V6 Dimensions
34
Gypsy Sizing
35
V1-6 Deck Template Guide
36
Electric Specifications
37
Trouble Shooting
37
Electric Windlass
37
Hydraulic Windlass
38
Hydraulic Leak
38
Hydraulic Question & Answer
38
Windlass will Not Start
38
Other manuals for Lewmar V1
