33
Generally, the Effects Lvl/Bal knob con-
trols the balance of the two effects in each
dual program. In the cascade variations,
rather than simply controlling balance, the
knob varies the amount of the first effect or
dry signal which is fed into the second effect.

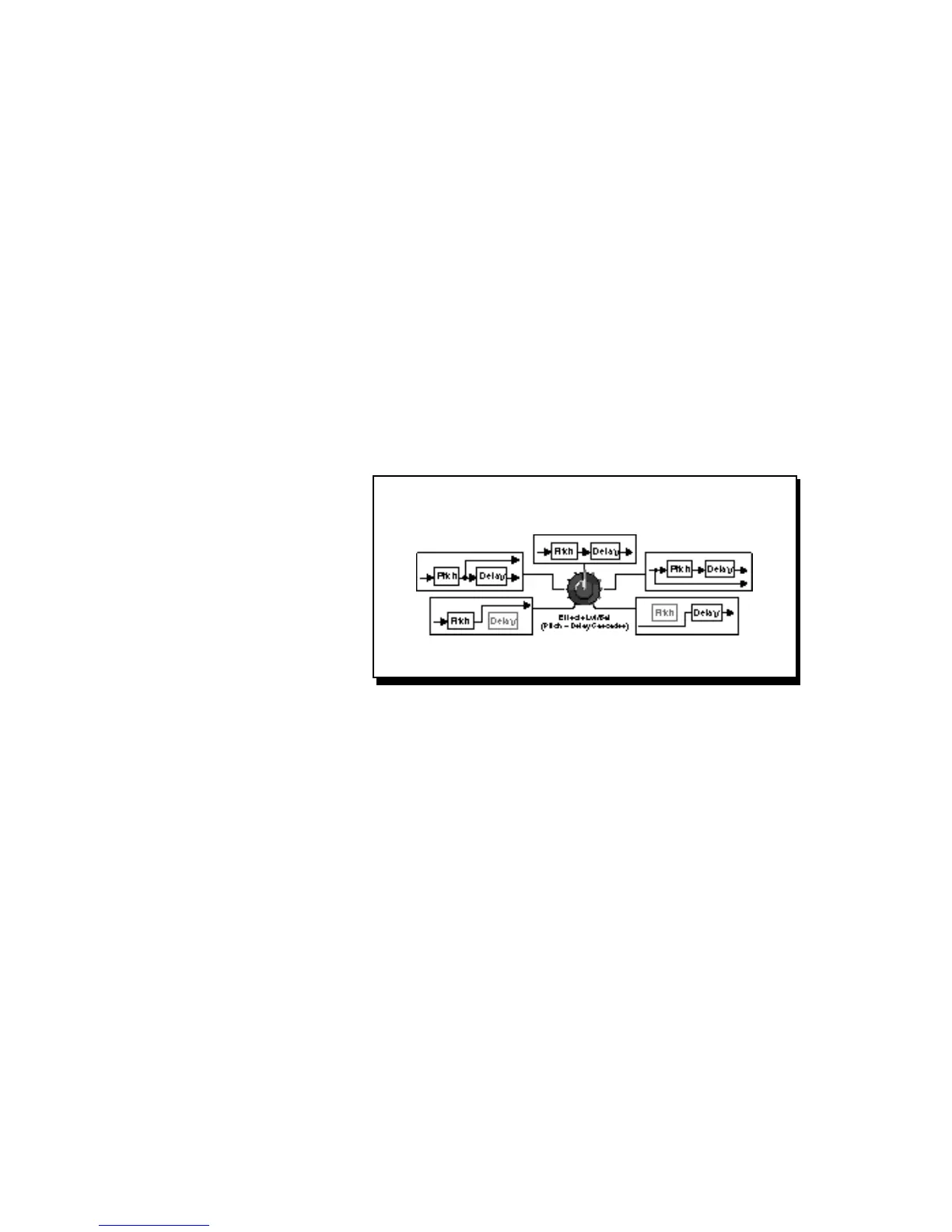

Behavior of Effects Lvl/Bal in the cascade variations. Several
points from the knob's continuous range are illustrated here, using
the Pitch-Delay program as an example.
At the leftmost setting,
you get only pitch shift
At the rightmost setting, you
get only delayed dry signal
This setting provides pitch
shift plus delayed pitch shift
At center, you get
delayed pitch shift
This setting provides delayed
pitch plus delayed dry signal

Lexicon MPX 100 Specifications

Audio Inputs and Outputs

audio input level	-30dBu to +4dBu
audio input impedance	500K unbalanced
audio output level	+8dBu typical
audio output impedance	75Ω for Headphone output

Digital Audio

digital audio output	20-bit Digital S/PDIF
sample rate	44.1kHz
conversion	20 bits A/D, 20 bits D/A

Frequency and Distortion

frequency response	20Hz-20kHz, ±1dB
thd+n	<0.05%, 20Hz-20kHz
dynamic range A/A	>95dB typical, 20Hz-20kHz, unweighted
dynamic range A/D	>100dB typical, 20Hz-20kHz, unweighted
crosstalk	45dB

Power and Environment

power requirements	9VAC wall transformer
operating temperature	32° to 104°F (0° to 40°C)
relative humidity	95% non-condensing

Weight and Dimensions

dimensions	19"W x 1.75"H x 4"D (483 x 45 x 102mm)
weight	2 lbs, 2 oz (0.959kg)
internal audio data path	DSP: 24-bit
