Lexicon MPX 100 User Manual

34

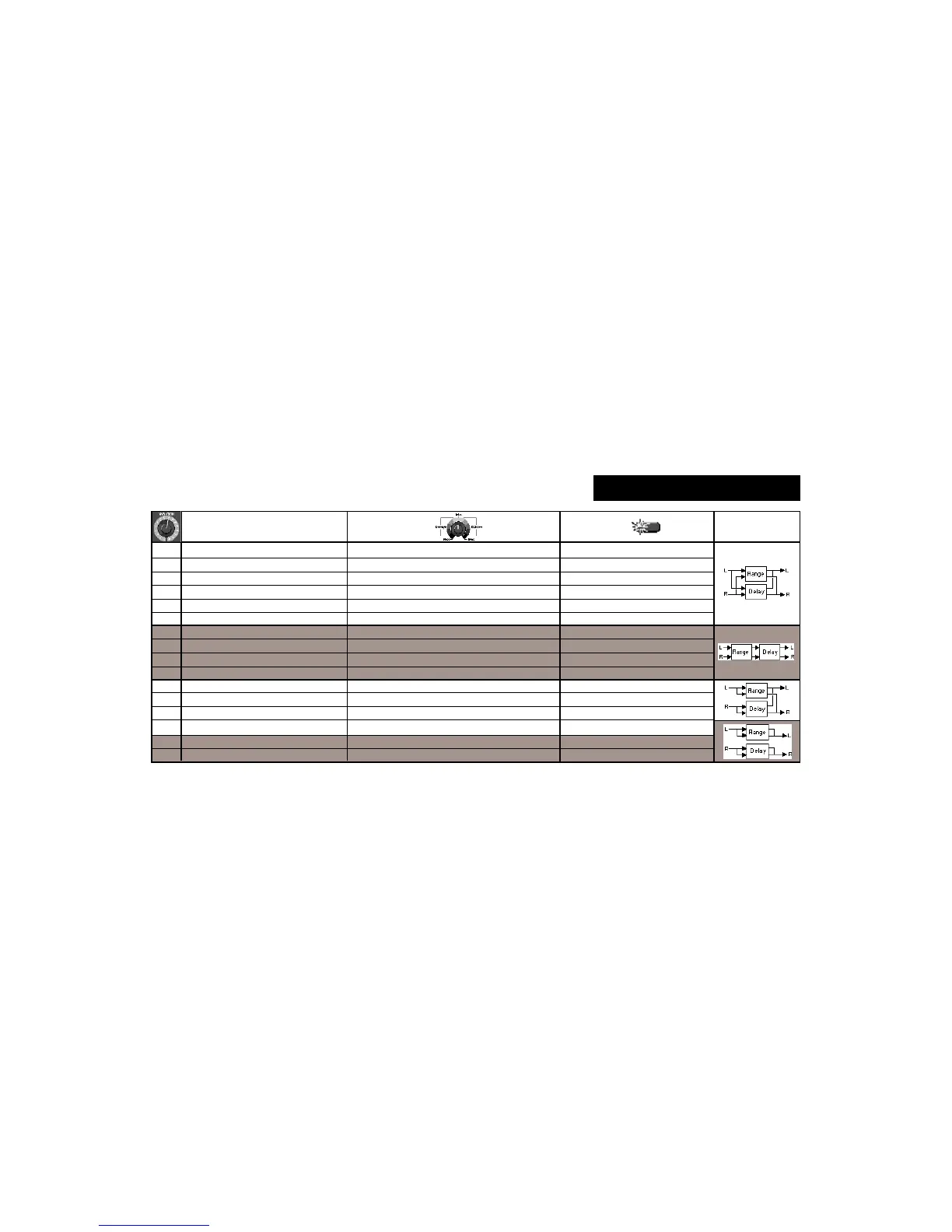

Flange-Delay VARIATIONs Adjust Tap Routing
1 Deep Flange - Stereo Delay Delay/Echo Feedback Delay Time (1/4 Note)
2 Deep Flange - Stereo Delay Delay/Echo Feedback Dotted 1/8 Note
3 Deep Flange - Stereo Delay Delay/Echo Feedback 1/8 Note Triplet
4 Light Flange - Ping Pong Delay/Echo Feedback Delay Time (1/4 Note)
5 Light Flange - Repeat Delay/Echo Time: 0-150ms, Feedback —
6 Light Flange - Bounce Delay/Echo Time: 0-200ms, Feedback —
7 Deep Flange>Stereo Delay Delay/Echo Feedback Delay Time (1/4 Note)
8 Deep Flange>Repeat Delay/Echo Time: 0-150ms, Feedback —
9 Deep Flange>Ping Pong Delay/Echo Feedback Delay Time (1/4 Note)
10 Deep Flange> Bounce Delay/Echo Time: 0-200ms, Feedback —
11 Light Flange+Stereo Delay Delay/Echo Feedback Delay Time (1/4 Note)
12 Ligth Flange+Ping Pong Delay/Echo Feedback Delay Time (1/4 Note)
13 Light Flange+Repeat Delay/Echo Time: 0-150ms, Feedback —
14 Light Flange+Bounce Delay/Echo Time: 0-200ms, Feedback —
15 Deep Flange/Mono Delay Delay/Echo Feedback Delay Time (1/4 Note)
16 Deep Flange/Mono Delay Delay/Echo Feedback Delay Time (Dotted 1/4 Note)
Flange – Delay

Lexicon MPX 100 Specifications

Audio Inputs and Outputs

audio input level	-30dBu to +4dBu
audio input impedance	500K unbalanced
audio output level	+8dBu typical
audio output impedance	75Ω for Headphone output

Digital Audio

digital audio output	20-bit Digital S/PDIF
sample rate	44.1kHz
conversion	20 bits A/D, 20 bits D/A

Frequency and Distortion

frequency response	20Hz-20kHz, ±1dB
thd+n	<0.05%, 20Hz-20kHz
dynamic range A/A	>95dB typical, 20Hz-20kHz, unweighted
dynamic range A/D	>100dB typical, 20Hz-20kHz, unweighted
crosstalk	45dB

Power and Environment

power requirements	9VAC wall transformer
operating temperature	32° to 104°F (0° to 40°C)
relative humidity	95% non-condensing

Weight and Dimensions

dimensions	19"W x 1.75"H x 4"D (483 x 45 x 102mm)
weight	2 lbs, 2 oz (0.959kg)
internal audio data path	DSP: 24-bit
