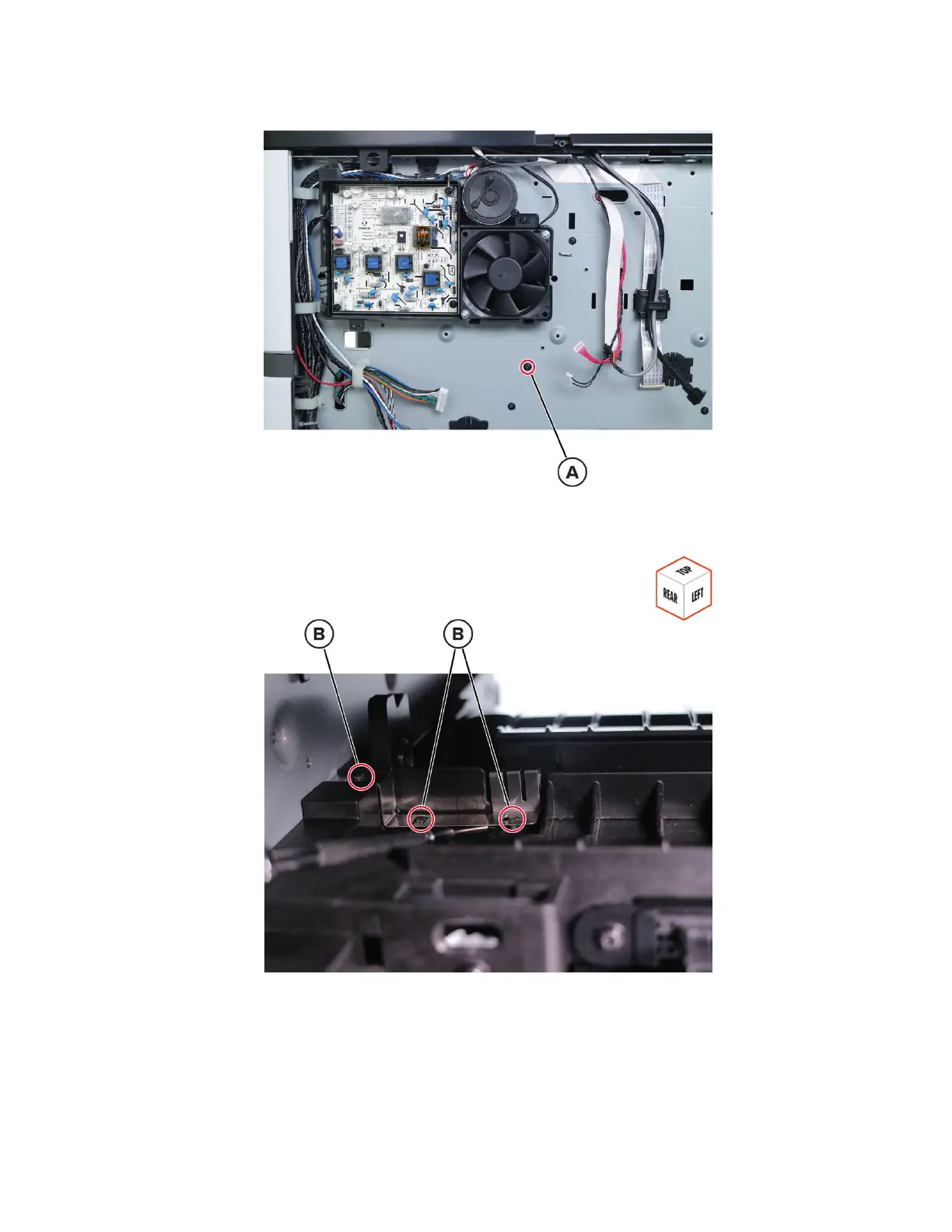

8 Remove screw 5 (A) from the right side frame.
9 Inside the printer, release the contact from its posts (B) using a prying tool.
Note: If necessary, push the frame to loosen the contact.
