Lexmark B2865 Service Manual

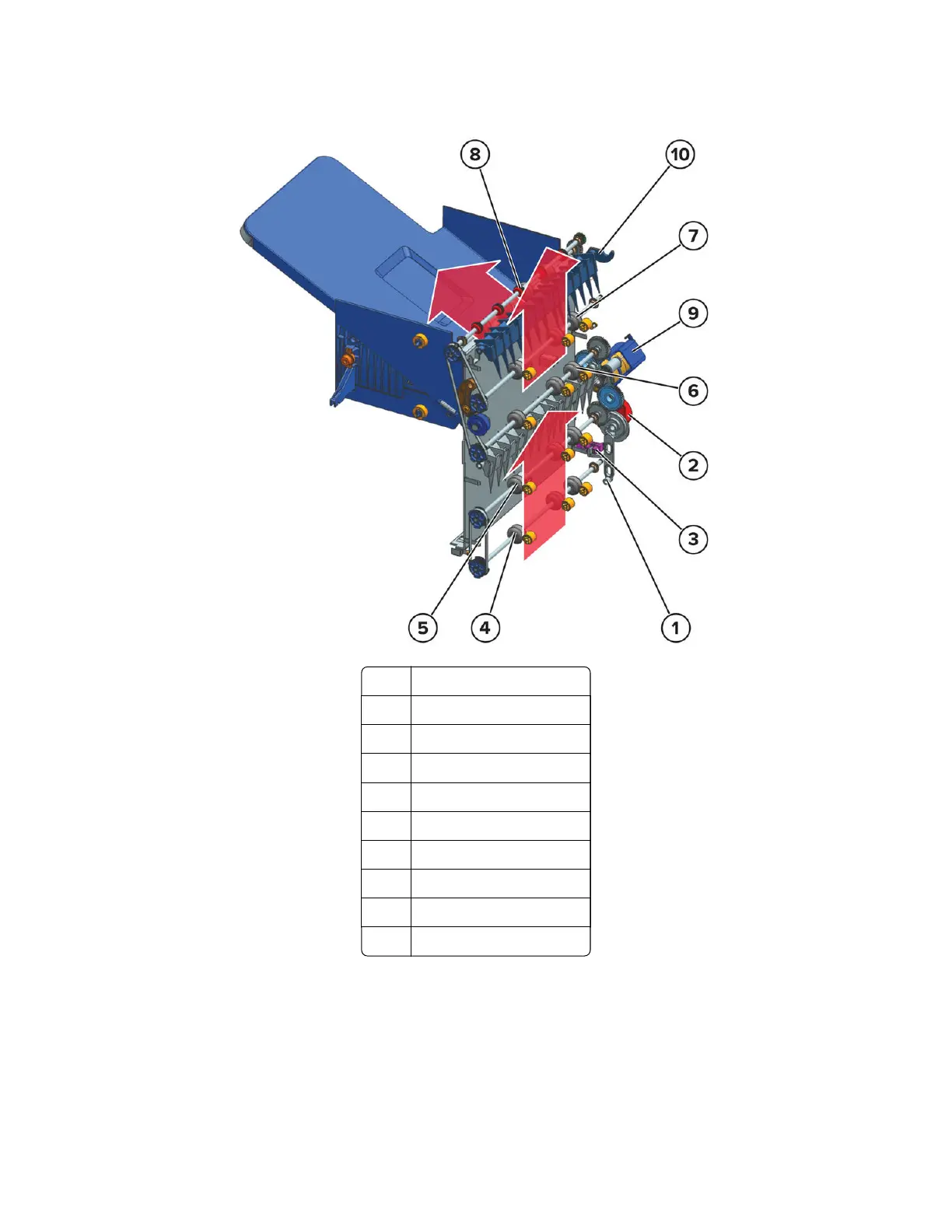

HCOE diverter and transport drive
1 Diverter plunger
2 Motor (diverter)
3 Sensor (diverter plunger)
4 Transport roller 1
5 Transport roller 2
6 Transport roller 3
7 Transport roller 4
8 Exit roller
9 Motor (transport)
10 Diverter
The diverter (from the printer or optional bin) under the HCOE switches to open up the paper path of the
expander. The diverter plunger controls the position of the diverter below it. The motor (diverter) drives the
movement of the plunger. The sensor (diverter plunger) detects the position of the plunger.
By default, the diverter redirects the paper to the expander bin. Paper will only go straight up if an optional bin
on top of the expander is the destination bin of the print job.
