Lexmark B2865 - Page 682

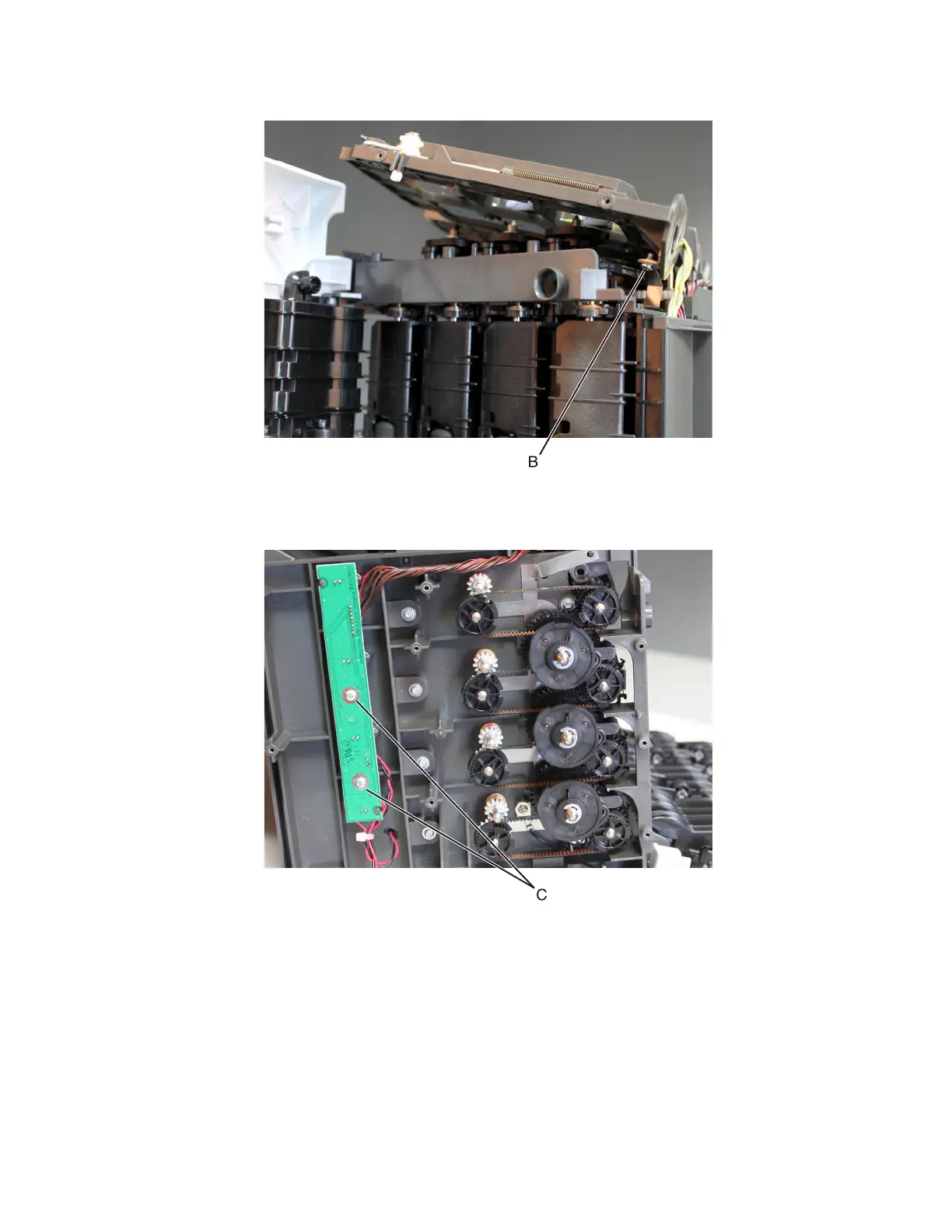

5 Carefully pull the inner right frame, and then remove the ground screw (B).
6 Move away the inner right frame to access the LED assembly behind it.
7 Remove the two screws (C) Using a #1 Phillips screwdriver, and then release the LED assembly.
4064
Parts removal
682
