HCIT pick arm roll removal
1. Remove the high-capacity input tray (HCIT) media tray assembly. See “HCIT media tray assembly
removal” on page 4-193.

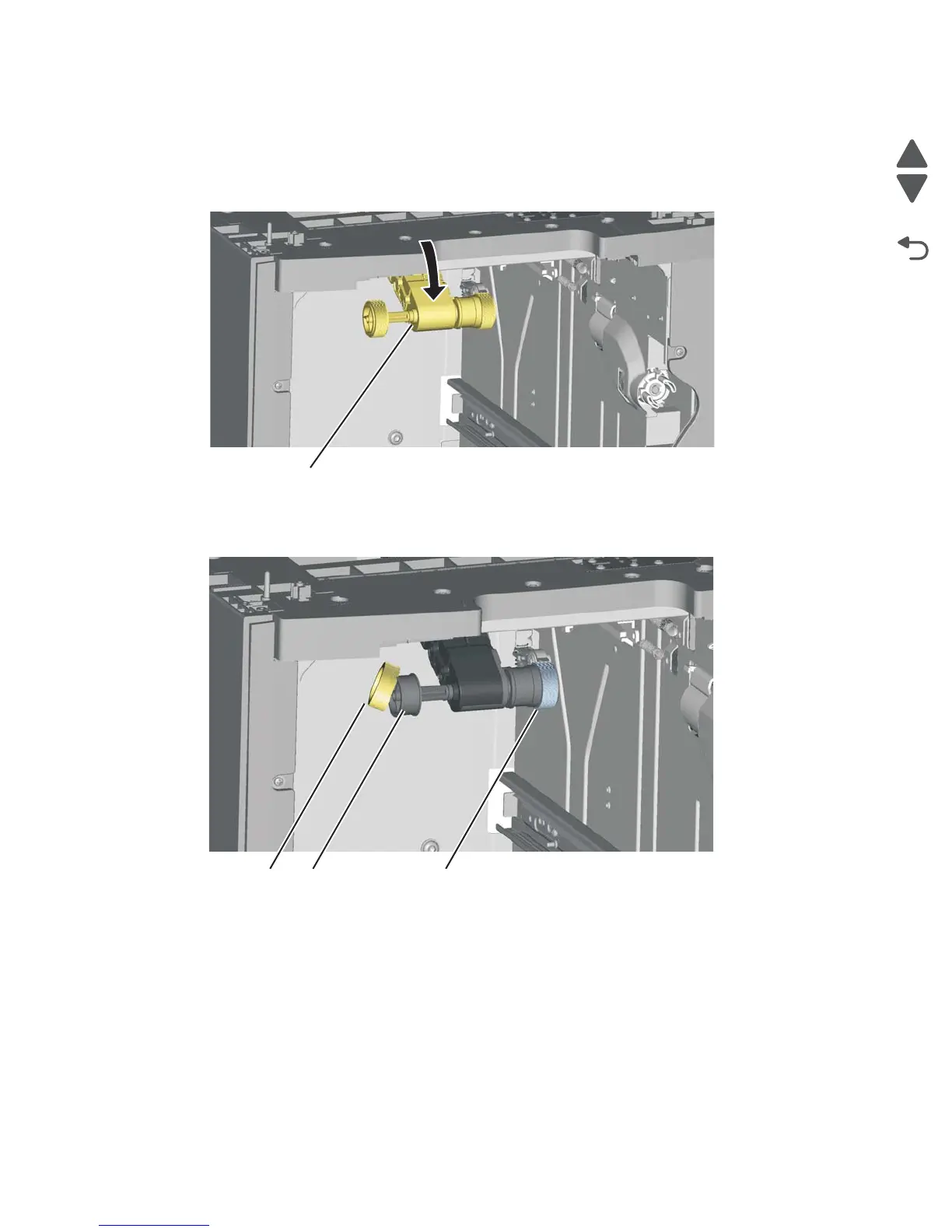

2. Pull the auto compensator pick arm (A) down.
3. Remove the pick arm roll (B) from the pick roll assembly (C).
4. Repeat for the other pick arm roll (D).
Note: Always replace the pick arm rolls as pairs.
Installation notes:
See “Pick arm roll removal and replacement” on page 4-143 to make sure the pick arm roll is oriented
correctly.
