Installing the printer
9
Installing and removing options
Installing the printer

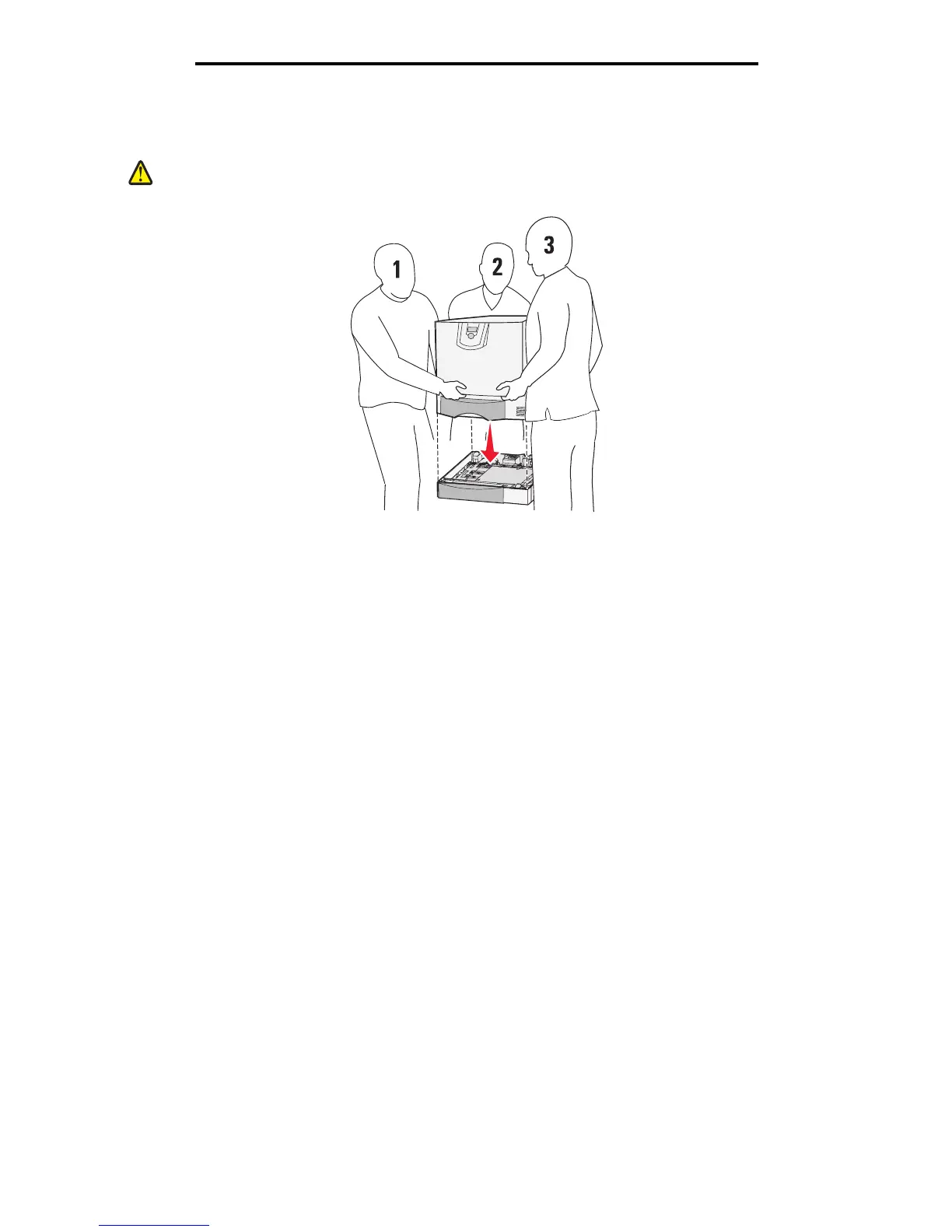

CAUTION: The printer weighs 48–82 kg (105–181 lb). It requires at least three (3) people to lift it safely. Use the
printer handholds to lift it, do not lift by the front of the printer, and make sure your fingers are not under
the printer when you set it down.
1 Unpack the printer.
2 Place the printer on the duplex unit or 500-sheet drawer:
a Align the positioning posts on the duplex or 500-sheet drawer with the holes in the printer.
b Lower the printer into place. Make sure it is seated securely.
Installing an output expander
Your printer supports an optional output expander that lets you stack up to 650 sheets of paper in one bin.
Note: After you unpack the output expander, install it immediately. Otherwise, the edges of the mounting
brackets could damage tabletops or fabrics.
1 Unpack the output expander and remove any packing material.
2 Remove the printer top cover.
Warning: The output expander tray is designed to hold the weight of print material only. Do not use it as a shelf;
excess weight may cause it to disengage from the output expander.
3 Align the mounting brackets on the bottom of the output expander with the slots in the top of the printer.
4 Lower the output expander into place.
