Installing the dual catch bin

1 Unpack the dual catch bin.

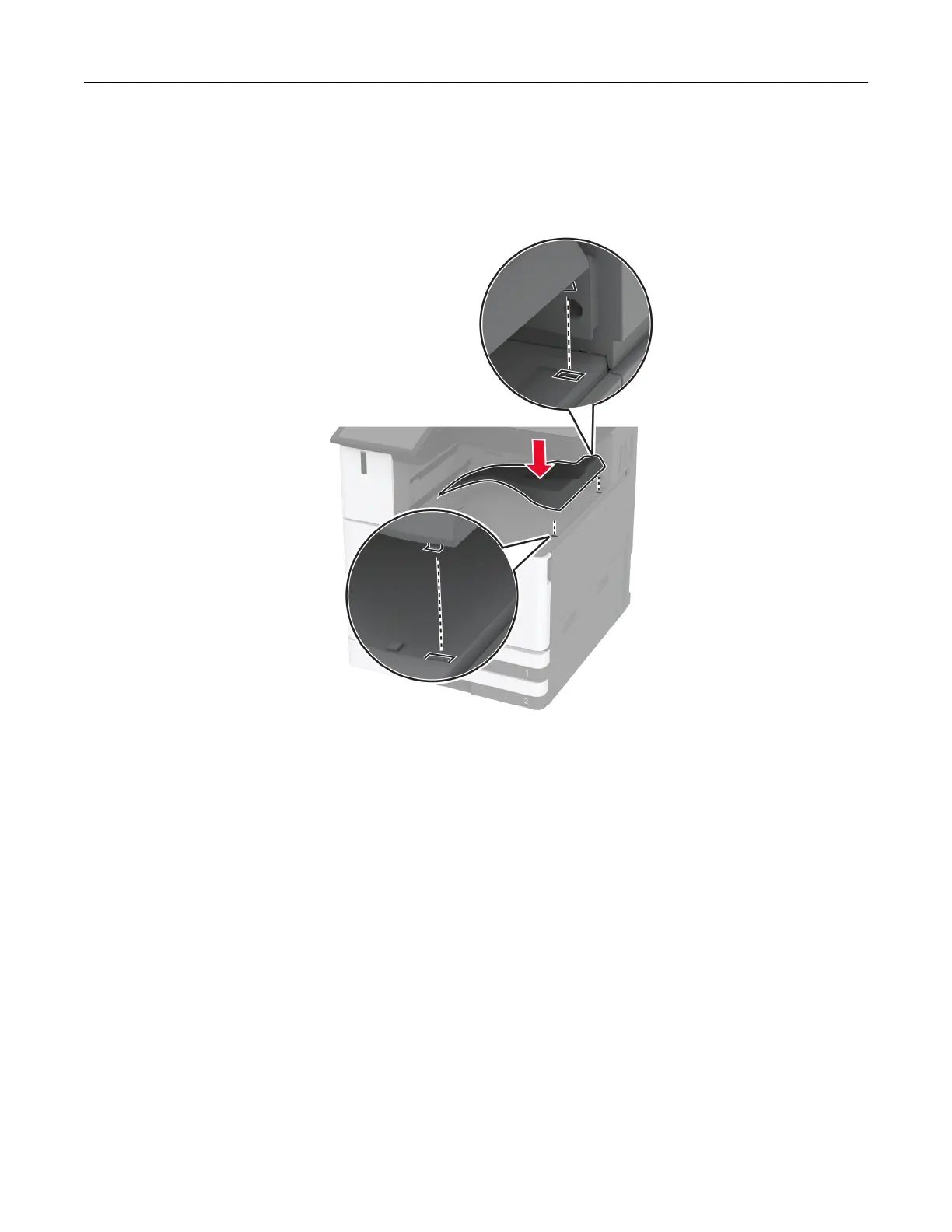

2 Attach the dual catch bin to the printer.

Set up, install, and conﬁgure 115
