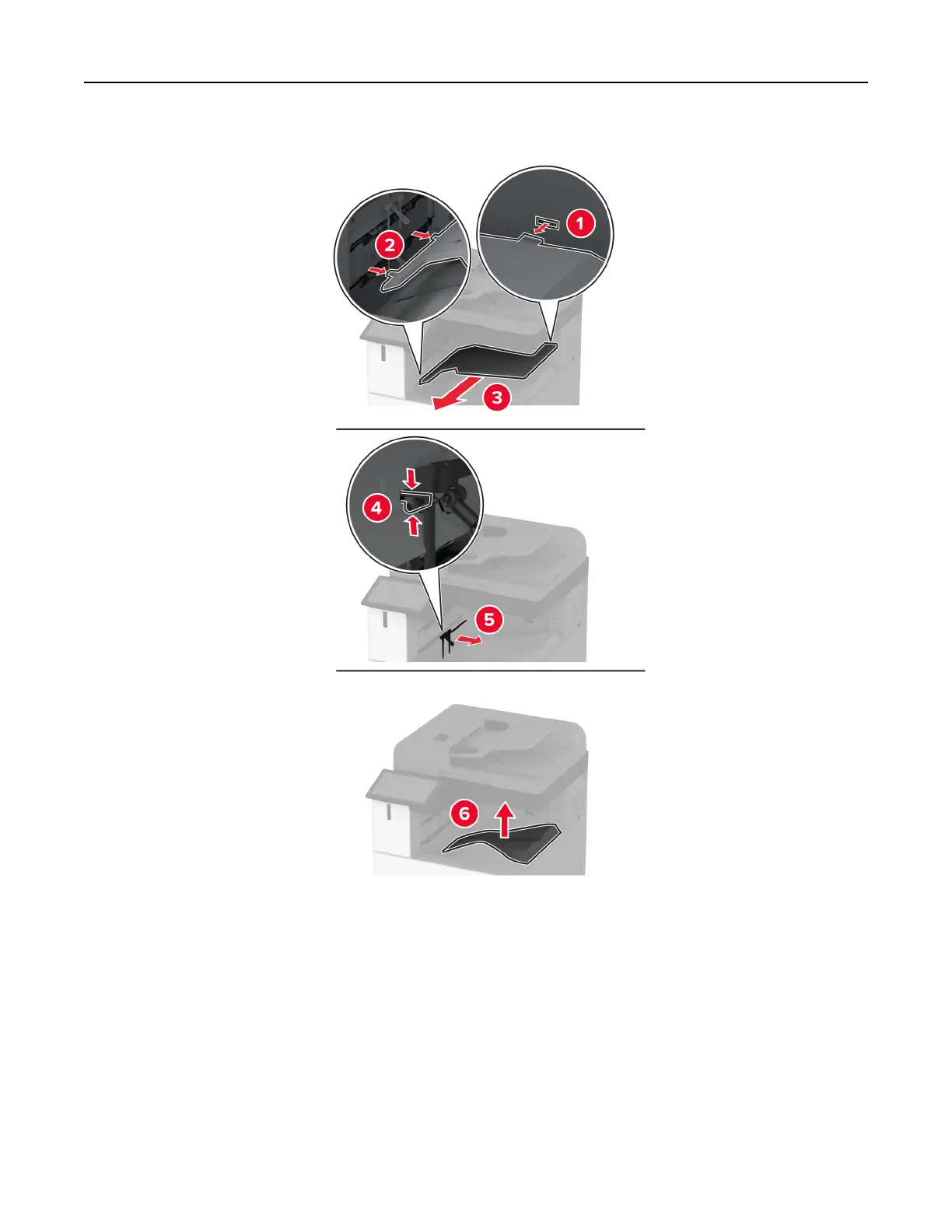

11 Remove the standard bin.

Note: Do not throw away the standard bin.

12 Open the front door, and then remove the blue knob.

Note: Do not throw away the knob.

Set up, install, and conﬁgure 138
