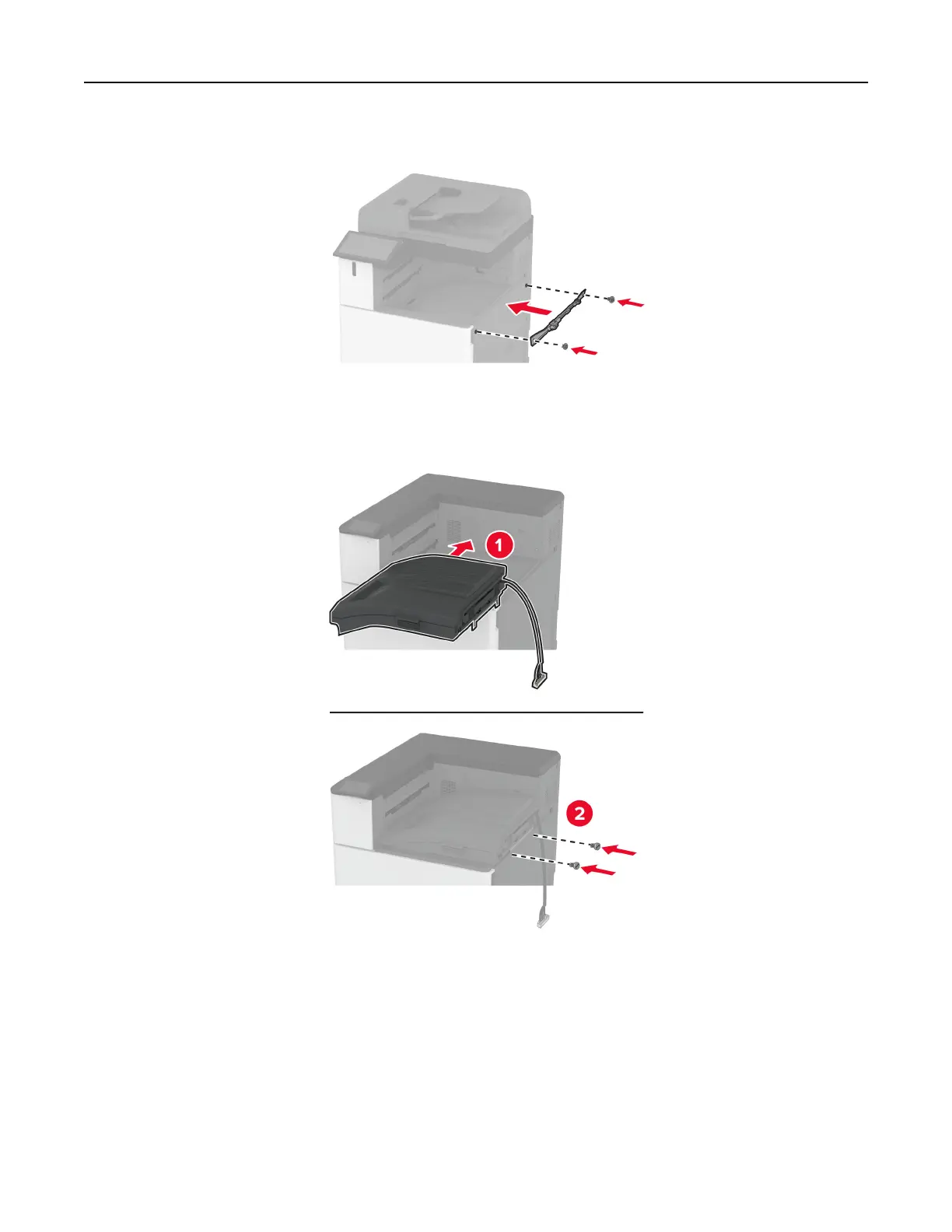

15 Attach the installation bracket for the ﬁnisher.

16 Insert the paper transport, and then use the screws to secure it.

Note: Use the screws that came with the ﬁnisher.

Set up, install, and conﬁgure 140
