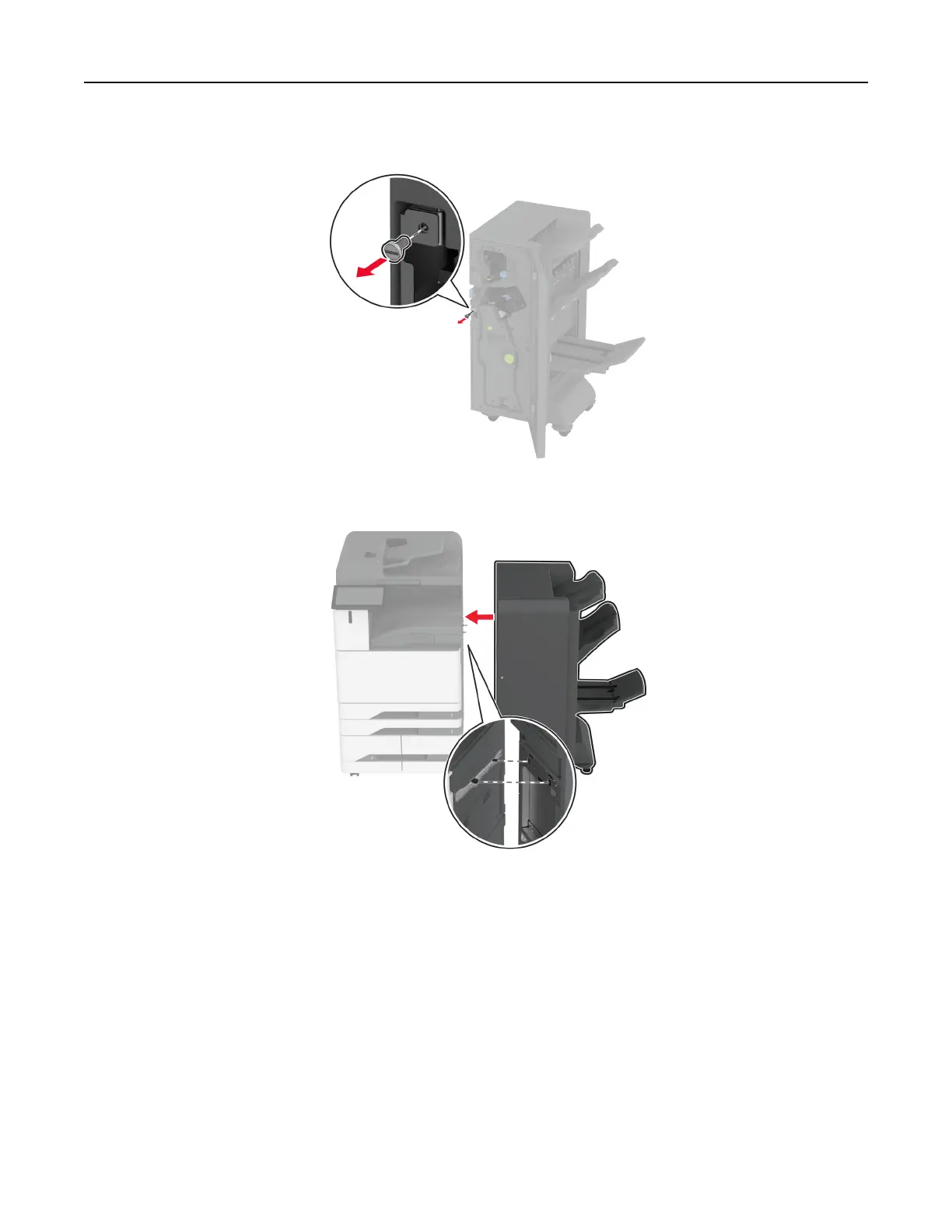

22 Using a ﬂat‑head screwdriver, remove the screw, and then close the ﬁnisher door.

23 Attach the

ﬁnisher

to the printer.

Set up, install, and conﬁgure 143
