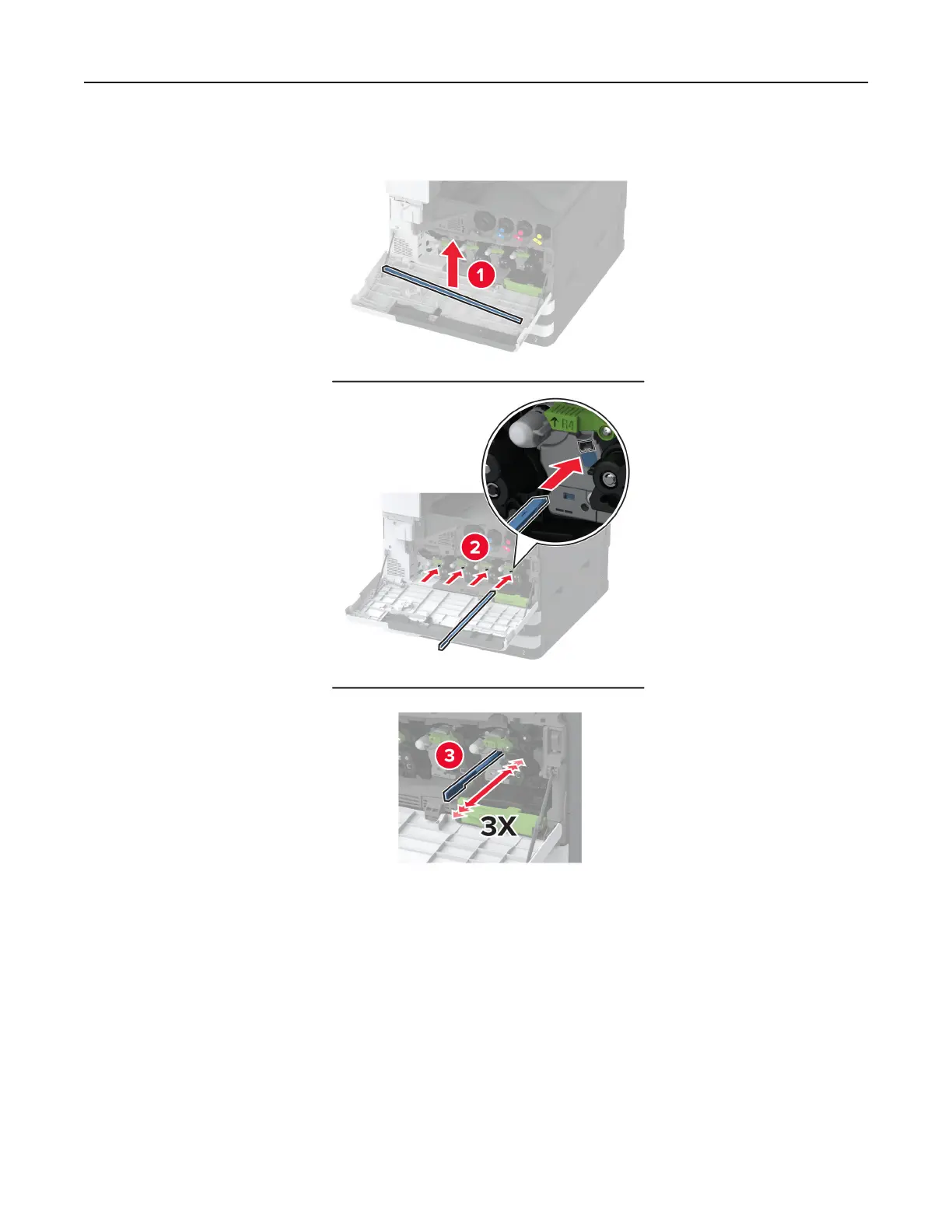

3 Remove the printhead wiper, and then clean the printhead lenses.

4 Put the printhead wiper back into place.

Maintain the printer 353
