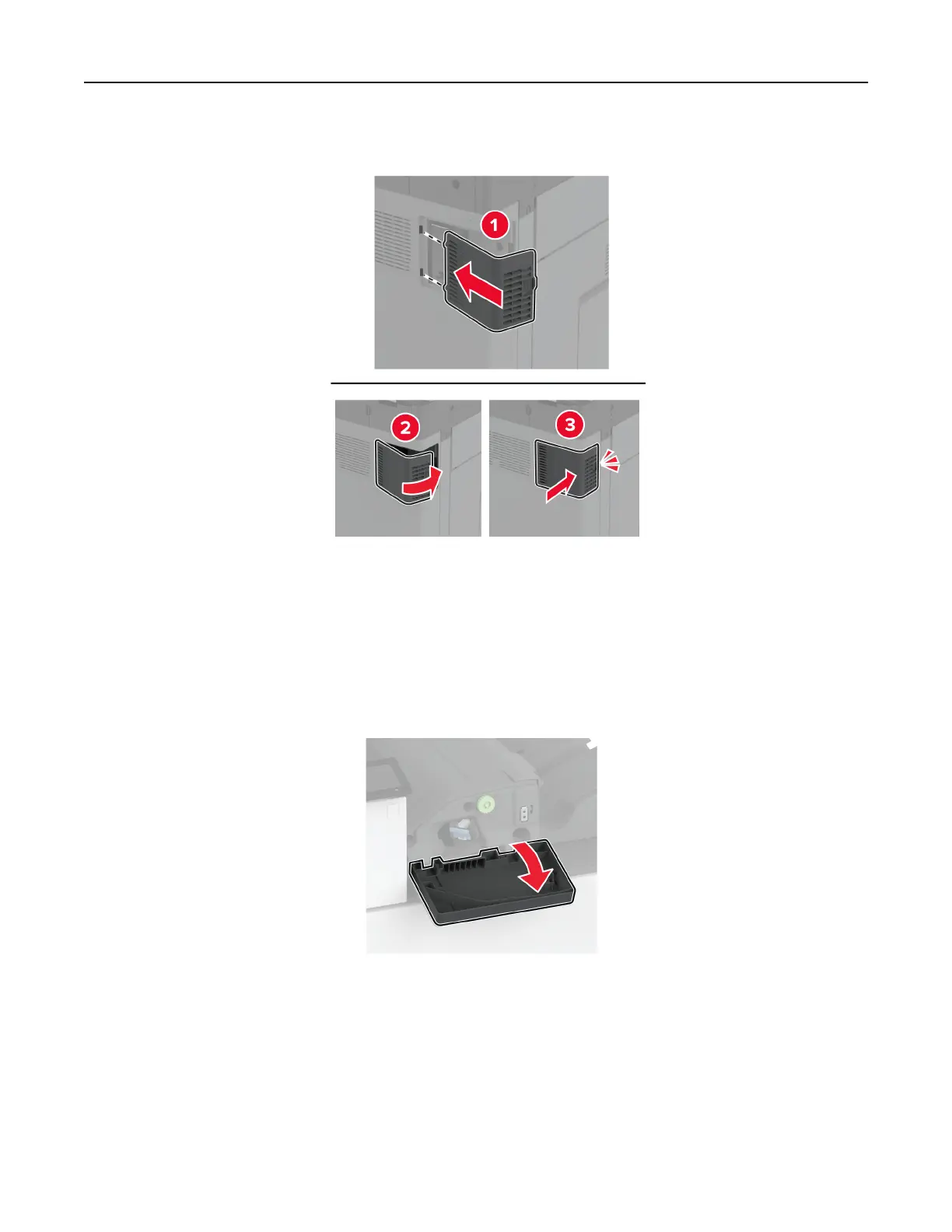

3 Attach the new R9 rear cover until it clicks into place.

Replacing the staple cartridge unit

Replacing the staple cartridge in the staple ﬁnisher

1 Open the ﬁnisher door.

Maintain the printer 376
