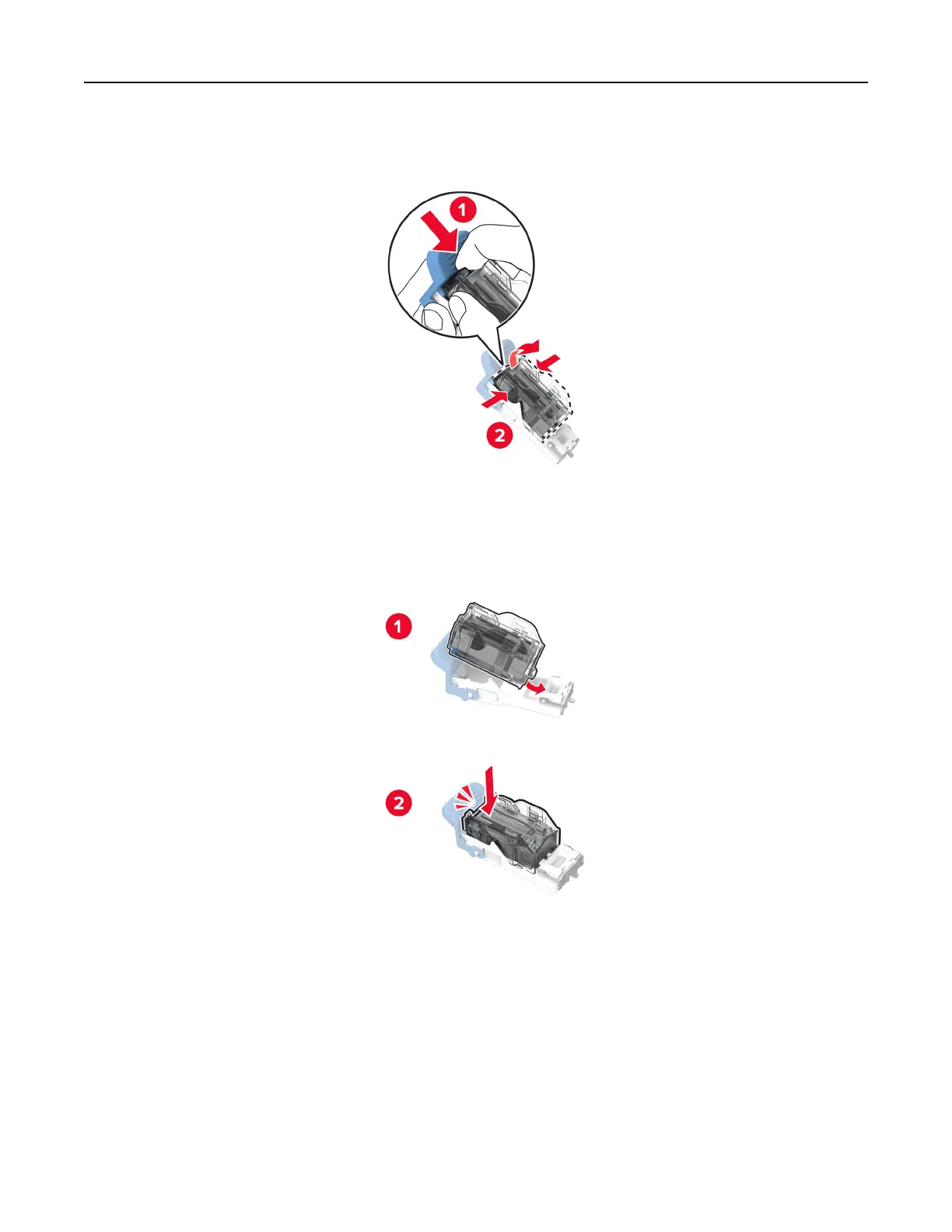

3 Remove the empty staple cartridge.

4 Unpack the new staple cartridge.

5 Insert the new staple cartridge until it clicks into place.

Maintain the printer 380
