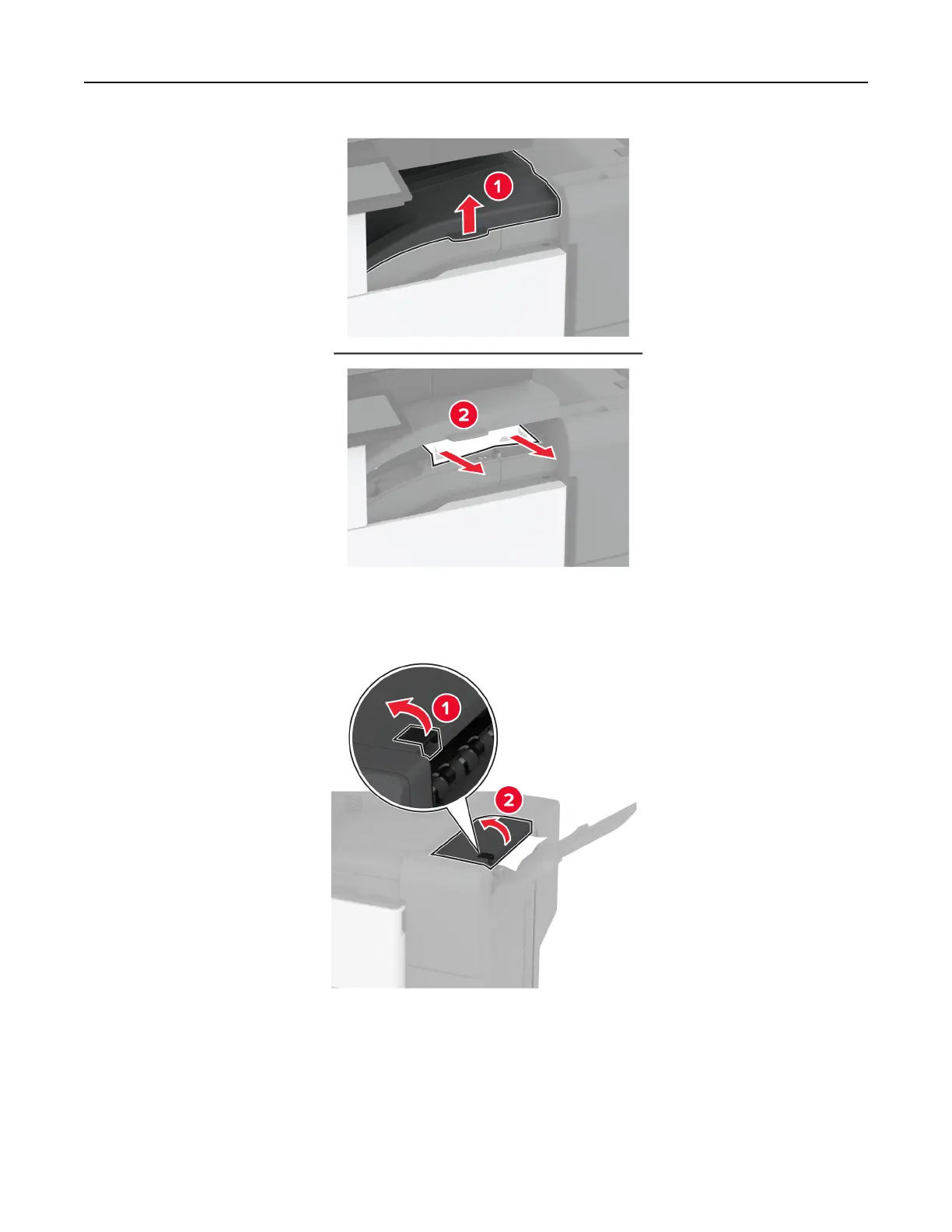

5 Close the cover.

6 Pull the lever on the staple, hole punch ﬁnisher and then lift the cover.

7 Remove the jammed paper.

Note: Make sure that all paper fragments are removed.

Troubleshoot a problem 463
