Photo 19
Photo 20
P
hoto 21
Photo 22
Photo 23

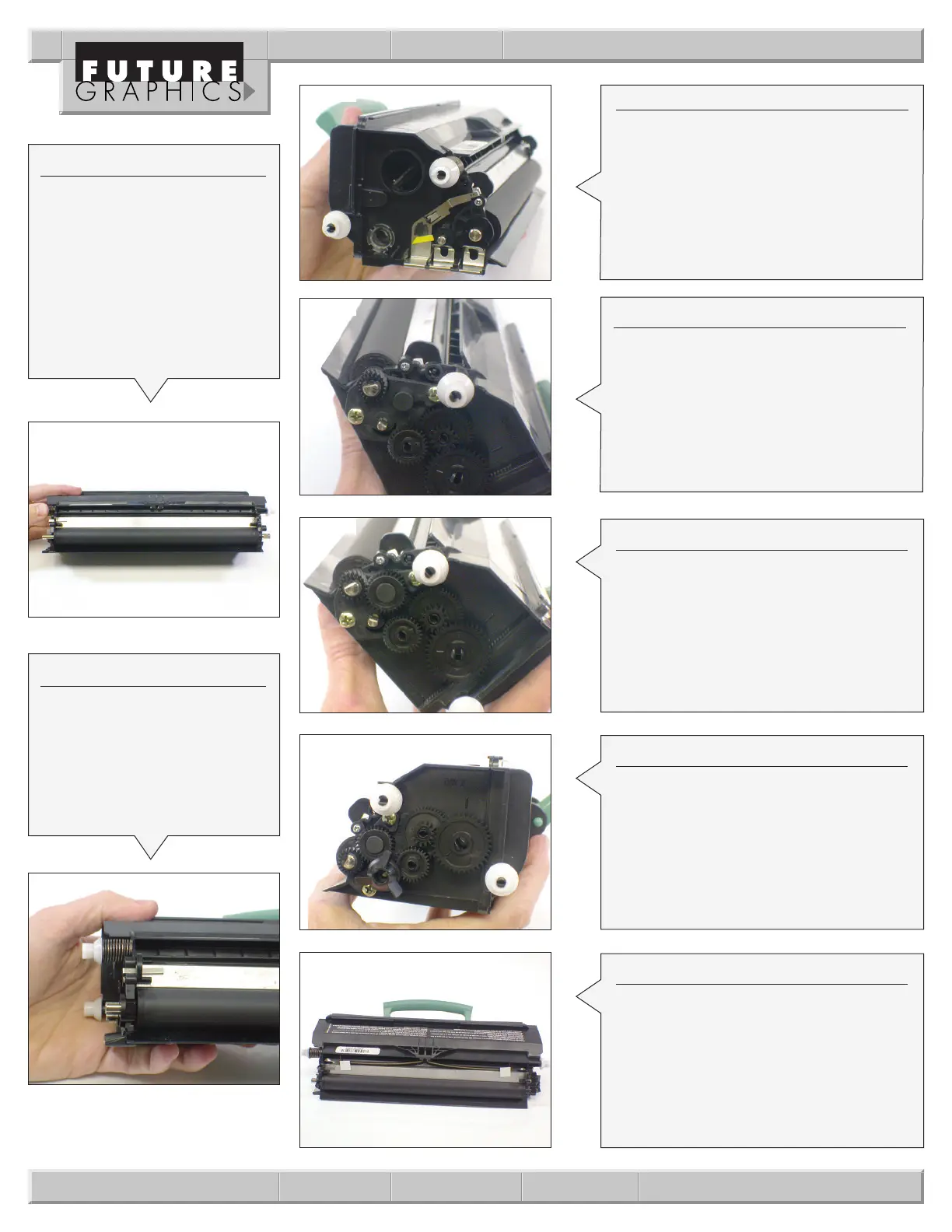

4 Lexmark E232/330/332 Technical Instructions
E-mail: info@futuregraphicsllc.com Website: www.futuregraphicsllc.com
S
tep 19
S
lide the developer roller contact onto
the end of the hopper.
(See Photo 21)
Step 20
Rotate the hopper 180° and install the
developer roller drive gear onto the axle
of the roller. Place the “E”clip onto the axle
to hold the drive gear in place.
(See Photo 22)
Step 21
Install the idler gear onto the end of the
cartridge. (See Photo 23)
Step 23
Place the doctor bar tension spring onto
the top of the doctor bar so the arrow is
facing a
w
a
y from the hopper. Place the
whit
e tabs on
t
o the do
c
t
or blade next to
each end of the tension spring.
(S
ee P
hoto 25)
Step 22
Install the cartridge drive gear onto the
end of the cartridge.
(See Photo 24)
Step 17
Install the keyed end of the
d
eveloper roller axle into the
t
oner hopper end plate and
lower the developer roller into
place.
(See Photo 19)
Step 18
Install the contact bushing onto
the developer roller axle. Rotate
the bushing clock-wise to lock
the bushing into place.
(See Photo 20)
Photo 24
Photo 25
