Lexmark E350d

4-4 Lexmark™ E350d, E352dn
4512-420, -430
Left side cover removal
1.
Remove Tray 1.
2. Open the front access cover.
3. Open the rear door.

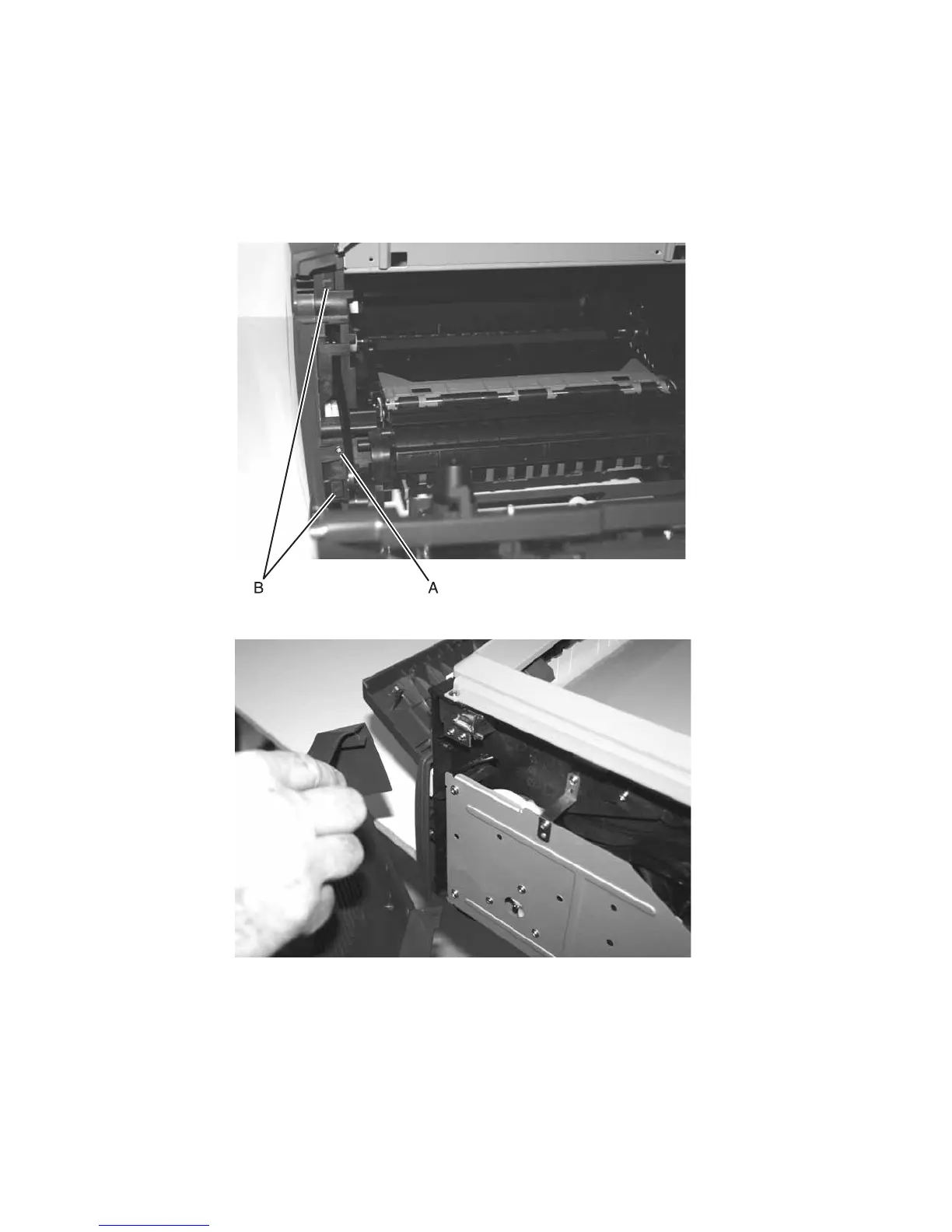

4. Remove the screw (A).
5. Unlatch the cover from the latches (B).
6. Position the printer with the left rear corner hanging over the edge of the table.
7. Swing the cover open.
8. Lift the top rear of the cover over the pivot point, and drop the cover away from the printer.
