Using printer menus
Understanding the control panel

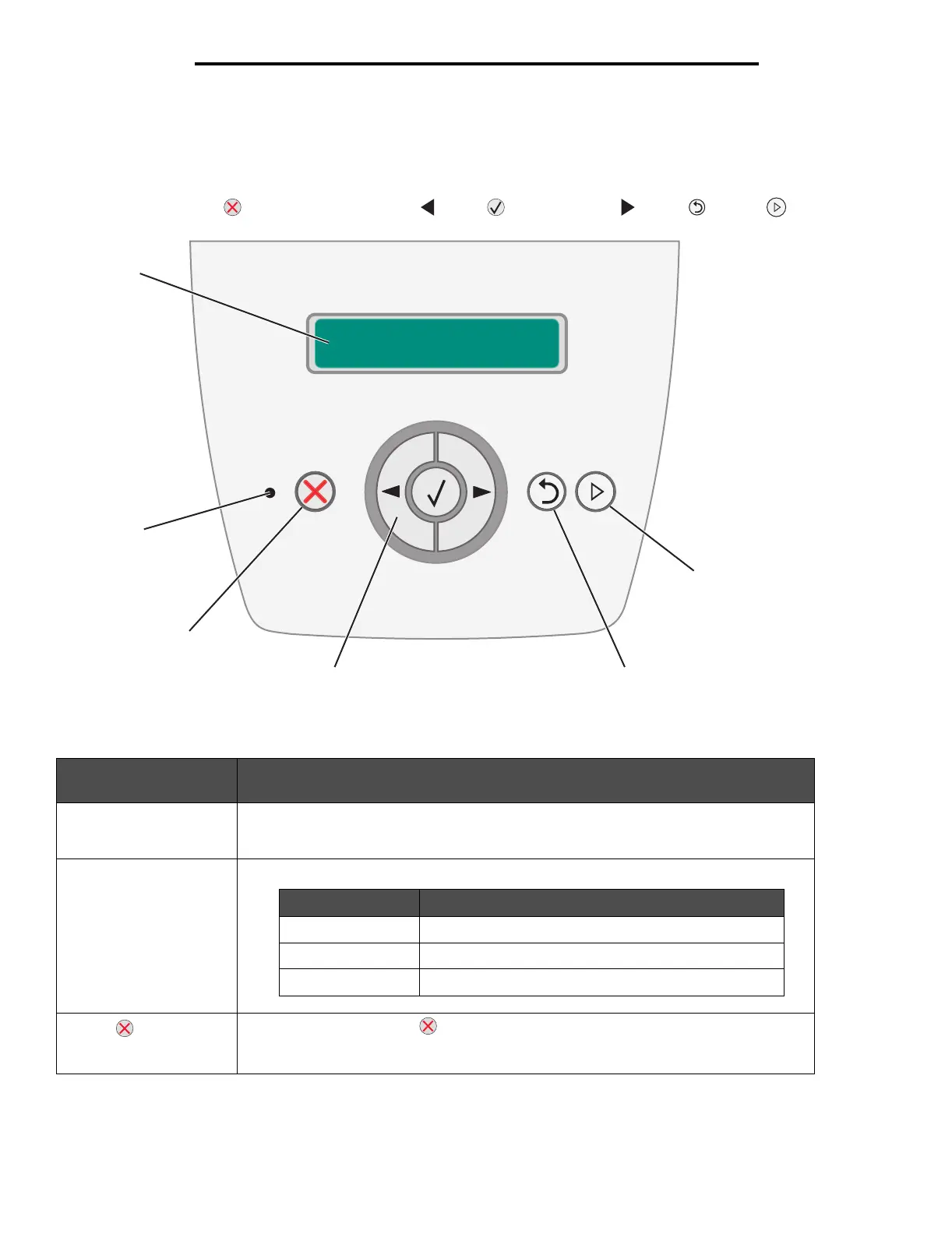

The control panel consists of these items:
• A 2-line liquid crystal display (LCD) that can show text
• Six buttons: Stop , Navigation (with Left Menu ,Select , and Right Menu ), Back , and Go
• An indicator light
The use of the buttons and the layout of the display are described in the following table.
Button or control panel
item
Function
1 Display The display shows messages describing the current state of the printer and indicating
possible printer problems you must resolve.
2 Indicator light A green LED is used on the display, indicating the printer status.
3 Stop Press and release the Stop button to stop the mechanical operation of the printer.
The Not Ready message will appear. Operation will resume when the Go button is
pressed.
1
2
3
4
5
6
Status Indicates
Off Power is off.
On Printer is on, but idle.
Flashing green Printer is on, and busy.
