Lexmark MS725 - Sensor (Tray 1 Pick) Removal

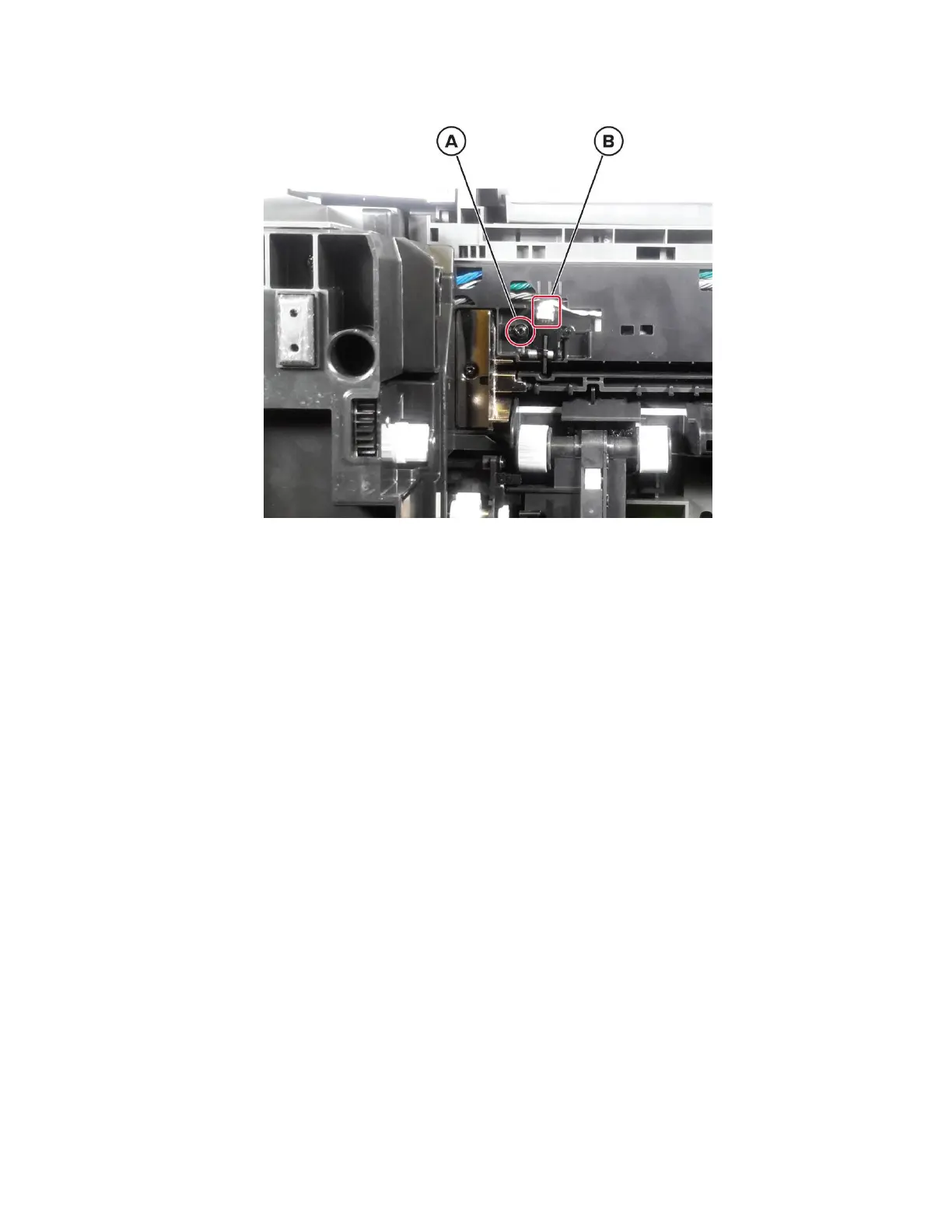

4 Remove the screw (A), and then disconnect the sensor cable (B).
5 Remove the sensor.
Sensor (tray 1 pick) removal
1 Remove all optional trays from the printer.
2 Remove tray 1.
3 To access the bottom, lay the printer on its back on a sturdy surface.
4064
Parts removal
469
