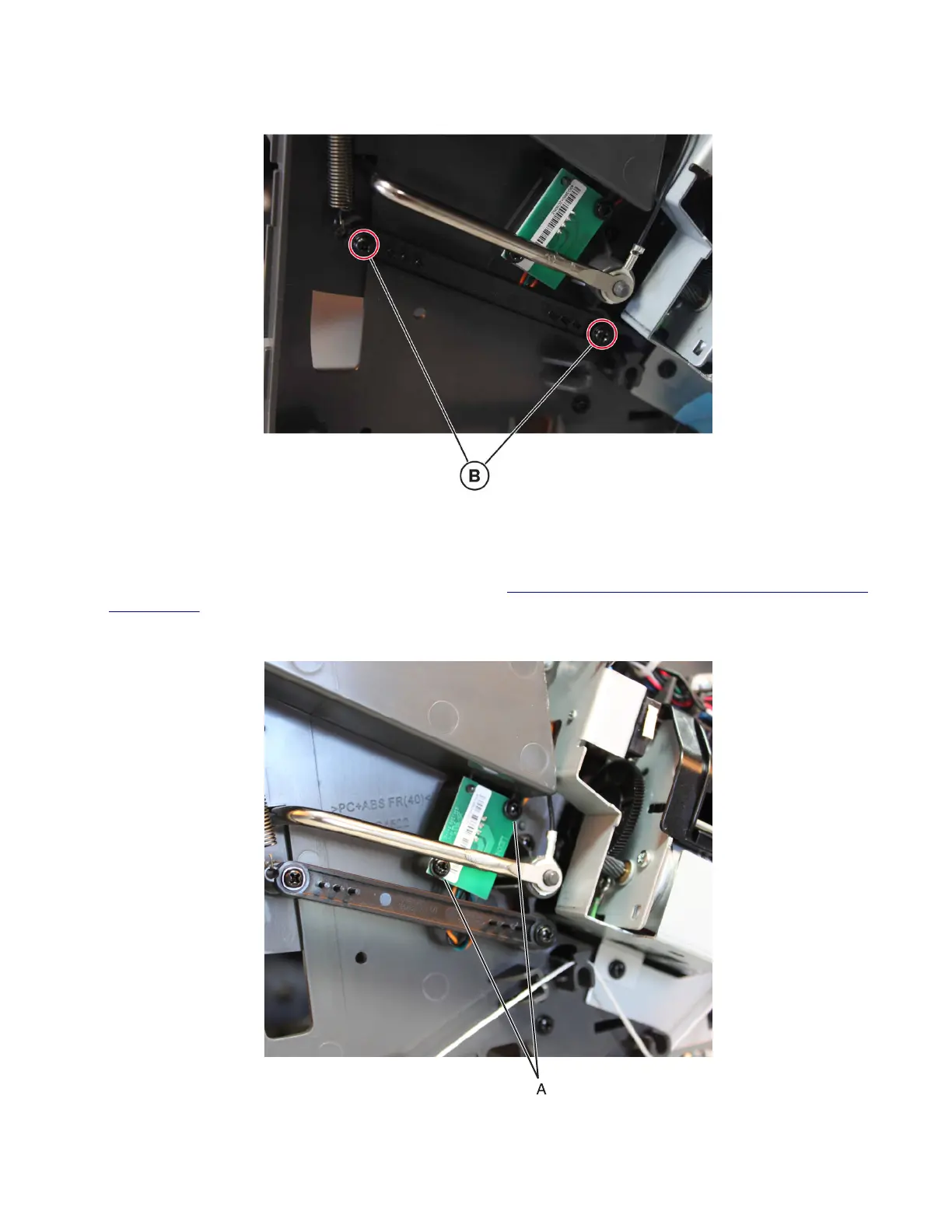

6 Remove the two screws (B), and then remove the right tray link.
Sensor (SHPF bin full send) removal
1 Remove the staple, hole punch
finisher
right cover. See “Staple, hole punch
finisher
right cover removal”
on page 701.
2 Remove the two screws (A), and then release the sensor.
4064
Parts removal
734
