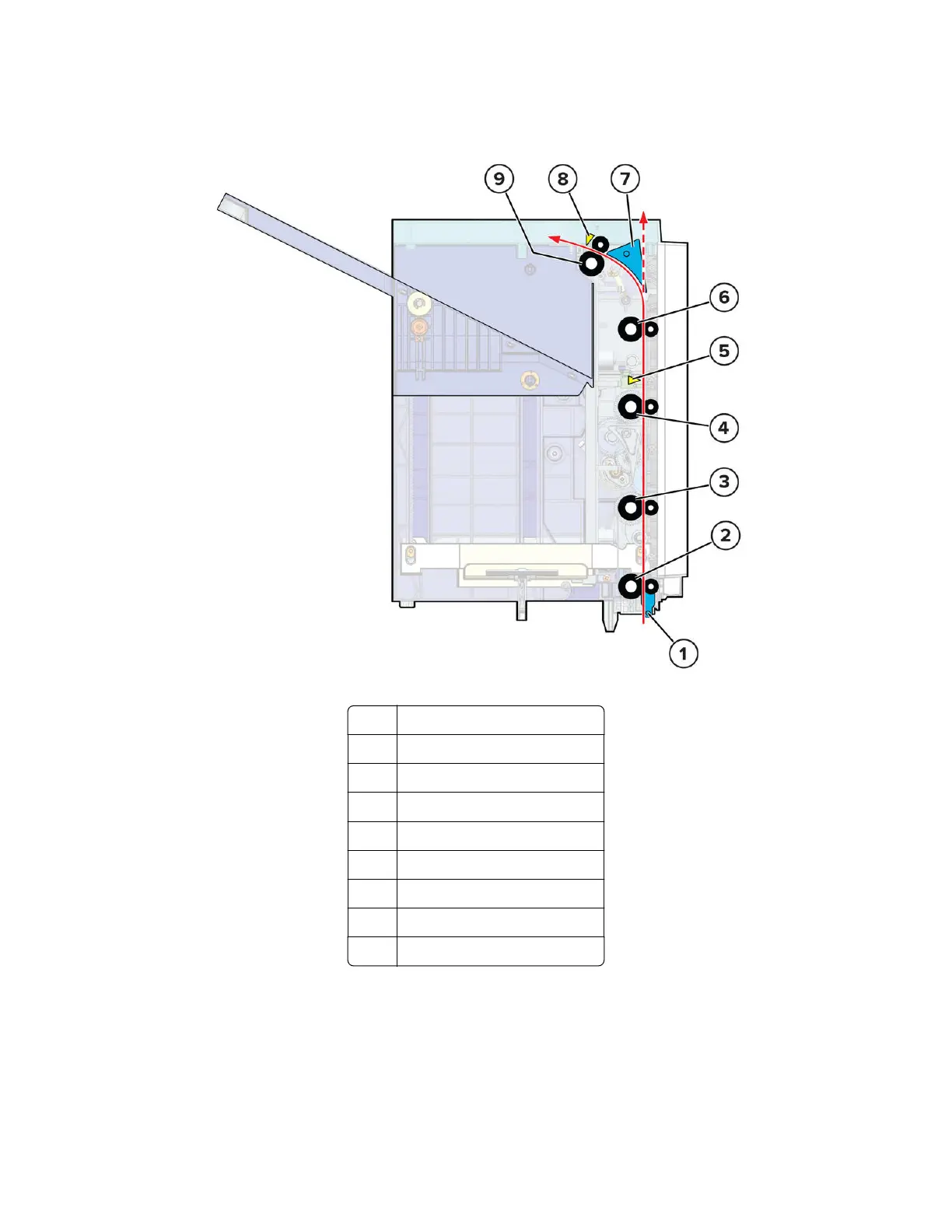

High capacity output expander locations
1 Diverter plunger
2 HCOE entrance roller
3 HCOE transport roller 1
4 HCOE transport roller 2
5 Sensor (HCOE pass‑through)
6 HCOE transport roller 3
7 Diverter
8 Sensor (HCOE bin full)
9 HCOE exit roller
4064
Component locations
