Lexmark MS725 - Sensor (OE Rear Door Interlock) Removal

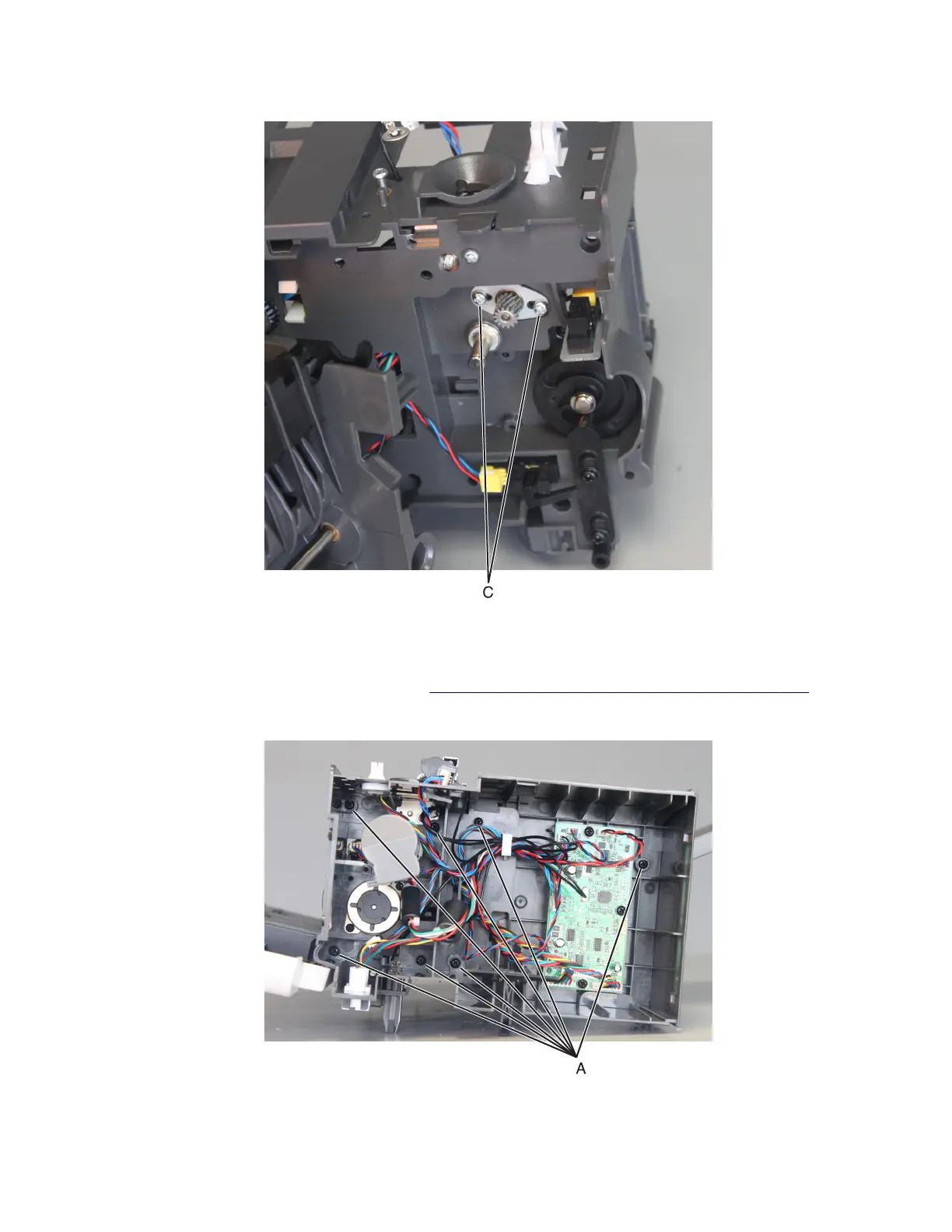

4 Remove the two screws (C), and then remove the motor.
Sensor (OE rear door interlock) removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A).
4064
Parts removal
534
