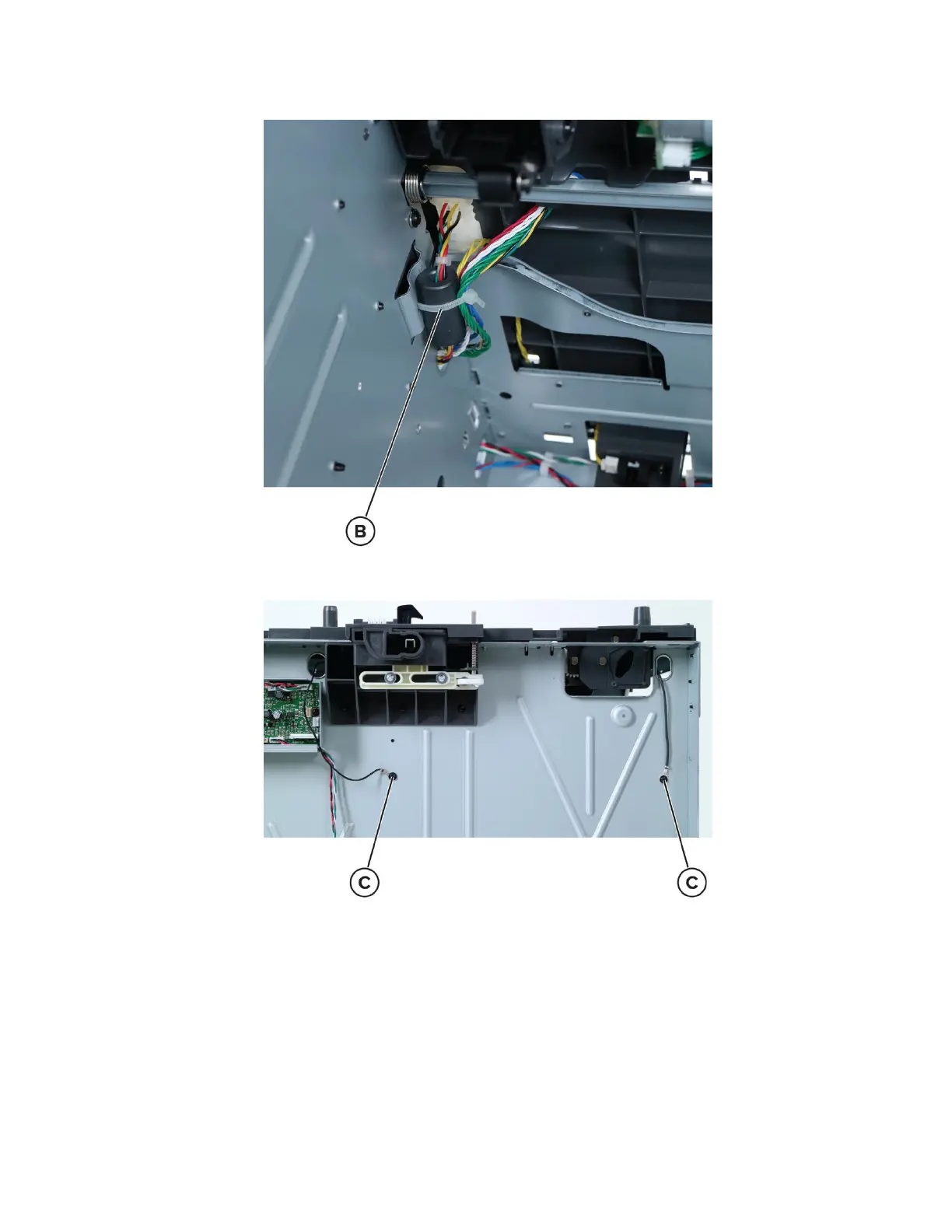

7 Cut the cable tie, and then disconnect the motor cables from the controller board.
8 Remove the two screws (C) from the ground cables.
9 Remove the cover.
4064
Parts removal
481
