Lexmark X860de - Assembly 15: Booklet maker 2

7-28 MFP Finisher Service Manual
7500-432, -632, and -832

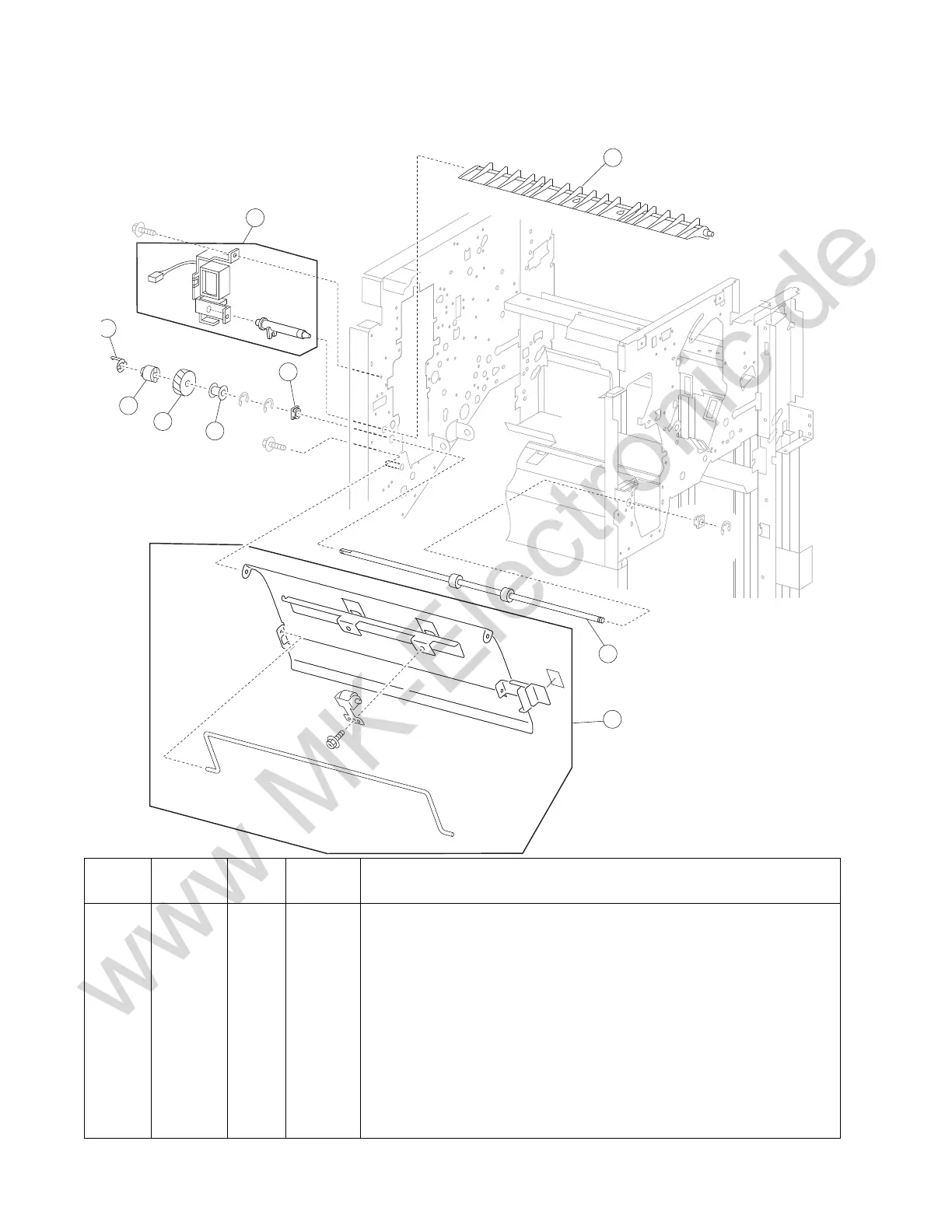

Assembly 15: Booklet maker 2
Asm-
Index
Part
number
Units/
option
Units/
FRU
Description
1 40X3961 1 1 Booklet diverter gate
2 40X4118 1 1 Booklet path media transport roll assembly
3 40X3958 1 1 Booklet pinch guide assembly
4 40X4128 1 1 Belt idler pulley
5 40X0899 1 1 Booklet media transport roll drive gear 23T
6 40X3962 1 1 Booklet media transport roll torque limiter
7 40X0880 1 1 Bushing 6 mm
8 40X3963 1 1 Booklet media path roll retainer
9 40X0917 1 1 Booklet diverter gate solenoid kit
• Booklet diverter gate solenoid
•Link
3
7
9
2
6
4
1
5
8
