Parts catalog 7-33
7500-432, -632, and -832

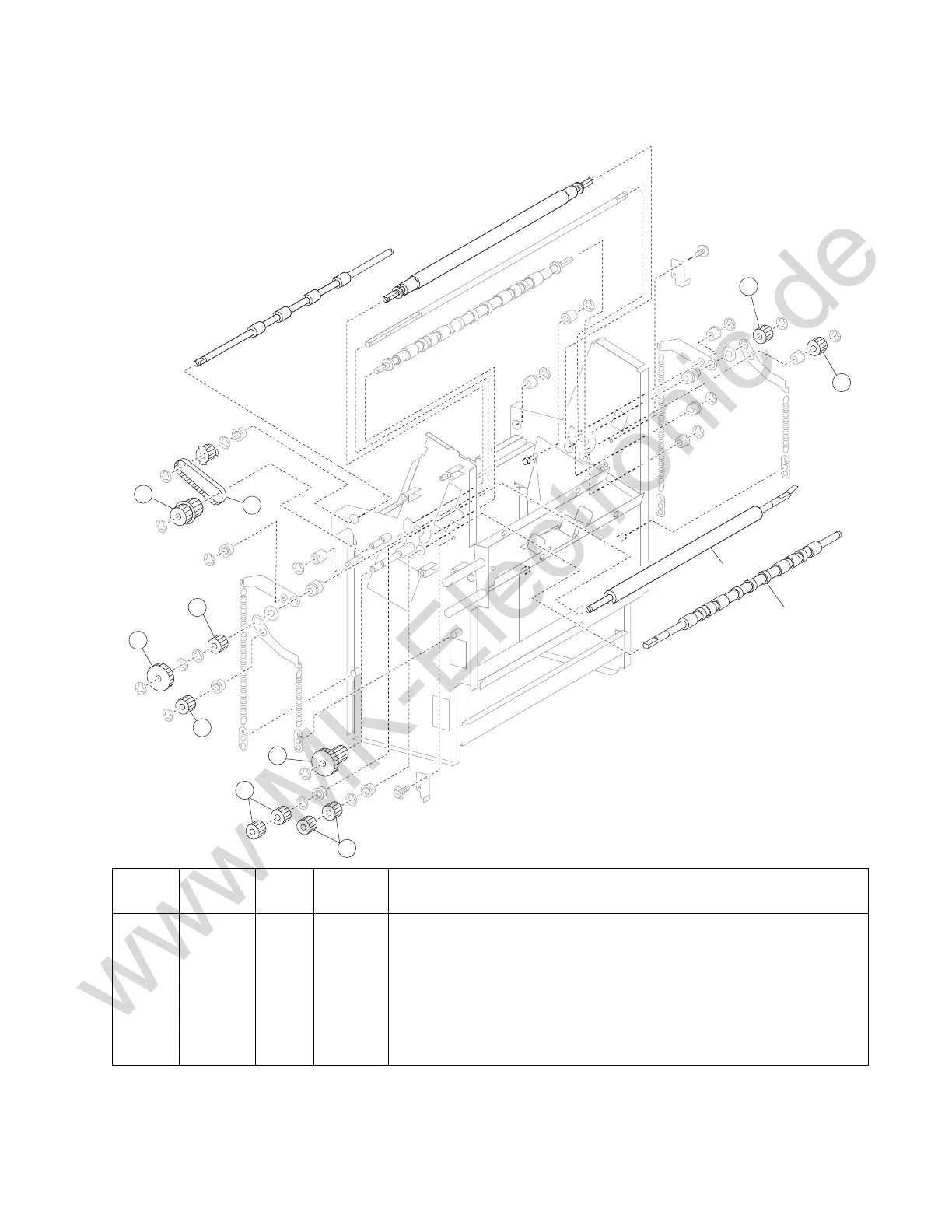

Assembly 20: Booklet maker 7
Asm-
Index
Part
number
Units/
option
Units/
FRU
Description
1 40X4008 2 1 Booklet roll drive gear 18T
2 40X4006 5 1 Booklet roll drive gear 16T
3 40X4007 1 1 Booklet idler gear 38/18T
4 40X4009 1 1 Booklet drive gear 16T
5 40X4010 1 1 Folding drive gear 38T
6 40X4005 1 1 Exit roll drive belt
7 40X4004 1 1 Exit roll idler gear 20/25T
3
5
7
2
6
4
1
2
2
1
