7-30 MFP Finisher Service Manual
7500-432, -632, and -832

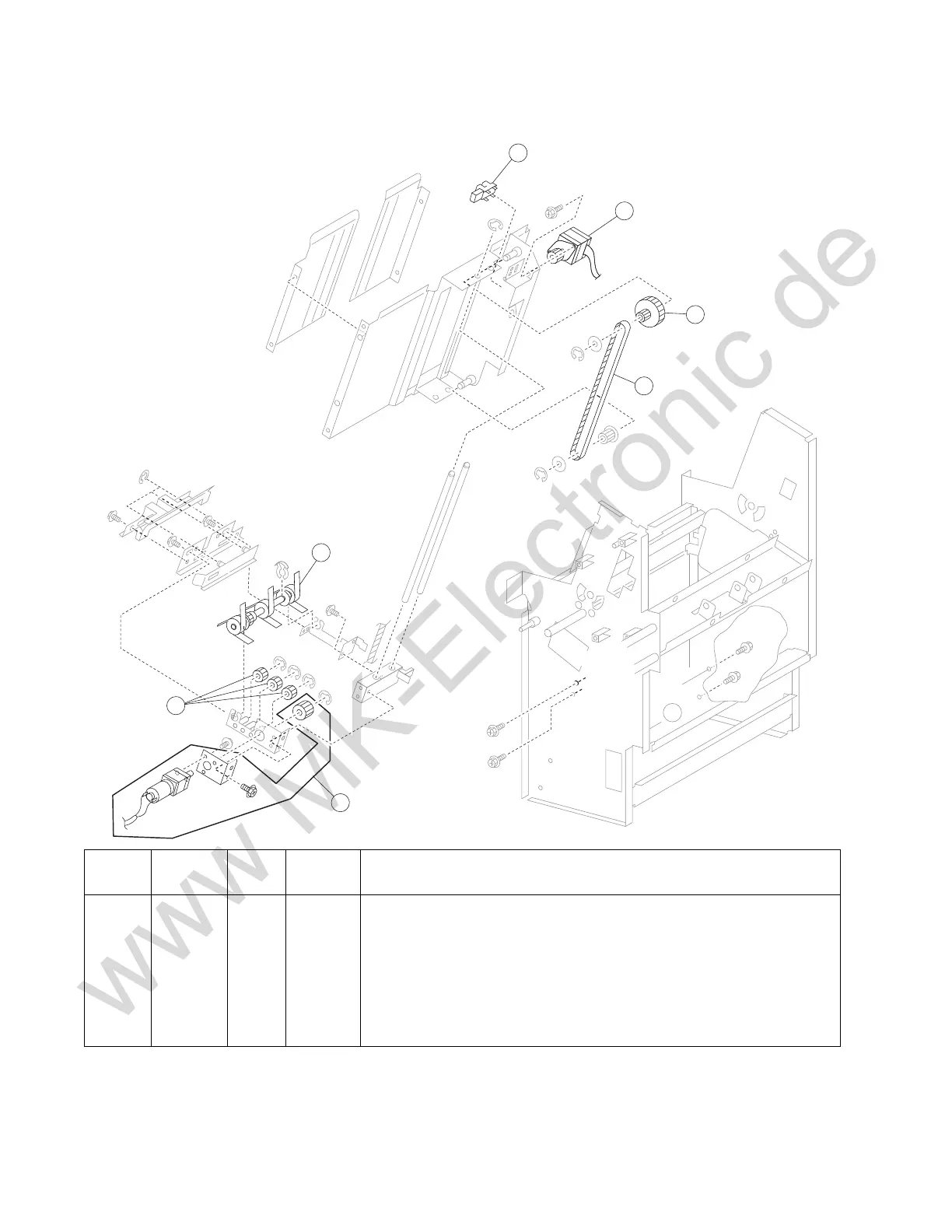

Assembly 17: Booklet maker 4
Asm-
Index
Part
number
Units/
option
Units/
FRU
Description
1 40X0825 10 1 Sensor (booklet end guide HP)
2 40X3992 1 1 Booklet media entrance drive motor
3 40X3993 1 1 Gear pulley 40/20T
4 40X3994 1 1 Booklet end guide drive belt
5 40X3996 1 1 Booklet paddle drive motor assembly
6 40X3995 3 1 Booklet paddle idler gear 14T
7 40X3997 1 1 Booklet paddle shaft assembly
3
5
2
4
1
7
6
