Lexmark X860de - Assembly 20: Booklet maker 7

7-34 MFP Finisher Service Manual
7500-432, -632, and -832
Assembly 21: Booklet maker 8
Asm-
Index
Part
number
Units/
option
Units/
FRU
Description

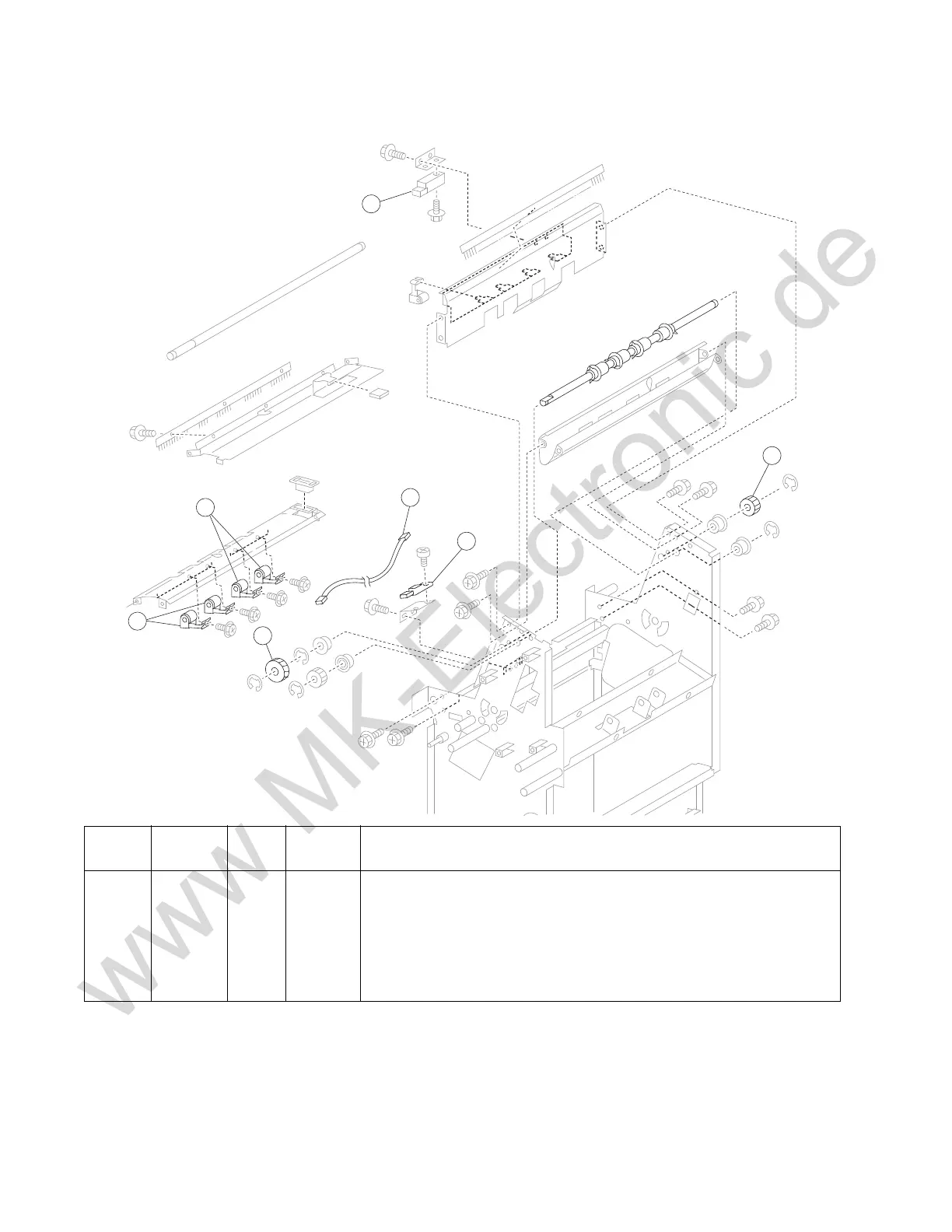

1 40X4012 1 1 Manual feed drive gear 28T
2 40X4014 1 1 Media exit sensor cable assembly
3 40X4013 1 1 Manual feed drive gear 17T
4 40X4011 4 1 Booklet media pinch roll assembly
5 40X0921 2 1 Sensor (booklet unit media exit)
6 40X0908 1 1 Sensor (finisher media entrance)
3
2
4
6
4
5
1
