Lexus LS 430 - Page 25

LS 430 CMT - Dual band portable phone
55
4.15
a) Connect the 20P connectors of the sub-
kit wire harness to the disconnected
20P connector of the vehicle har-
ness.
b) Refit the luggage compartment trims,
D-rings, covers, boards etc.
33
1
18P
20P
4.14
a) Locate the 18P connector of the vehi-
cle wire harness on the front upper right
side of the luggage compartment.
b) Disconnect and discard the dummy con-
nector from the 18P vehicle harness
.
c) Route the subkit wire harness and
connect the subkit harness 18P connec-
tor to the 18P connector of the vehicle
harness.
d) Locate and disconnect the 20P connec-
tor .
33
31
1
31
15
31
15
1
12
18P
33
4.13

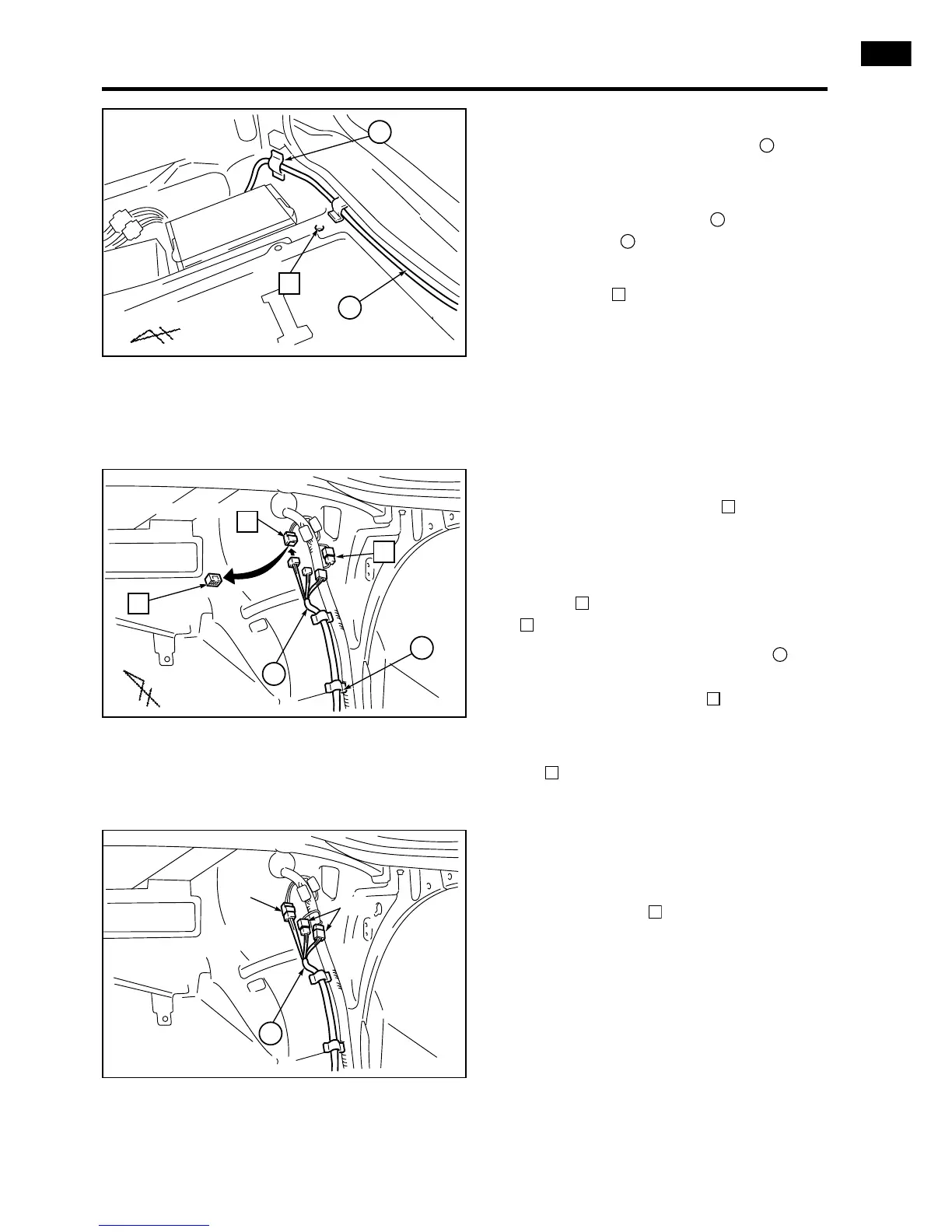

a) Route the subkit wire harness to the
right side of the luggage compartment
along the vehicle wire harness.
b) Secure the wire harness with strips of
foam (small) .
c) Be careful not to cover the original
thread hole .
29
13
1
1
13
1
29
NAVI-ECU
(if equipped)
31
