LS 430 CMT - Dual band portable phone
54
4.12

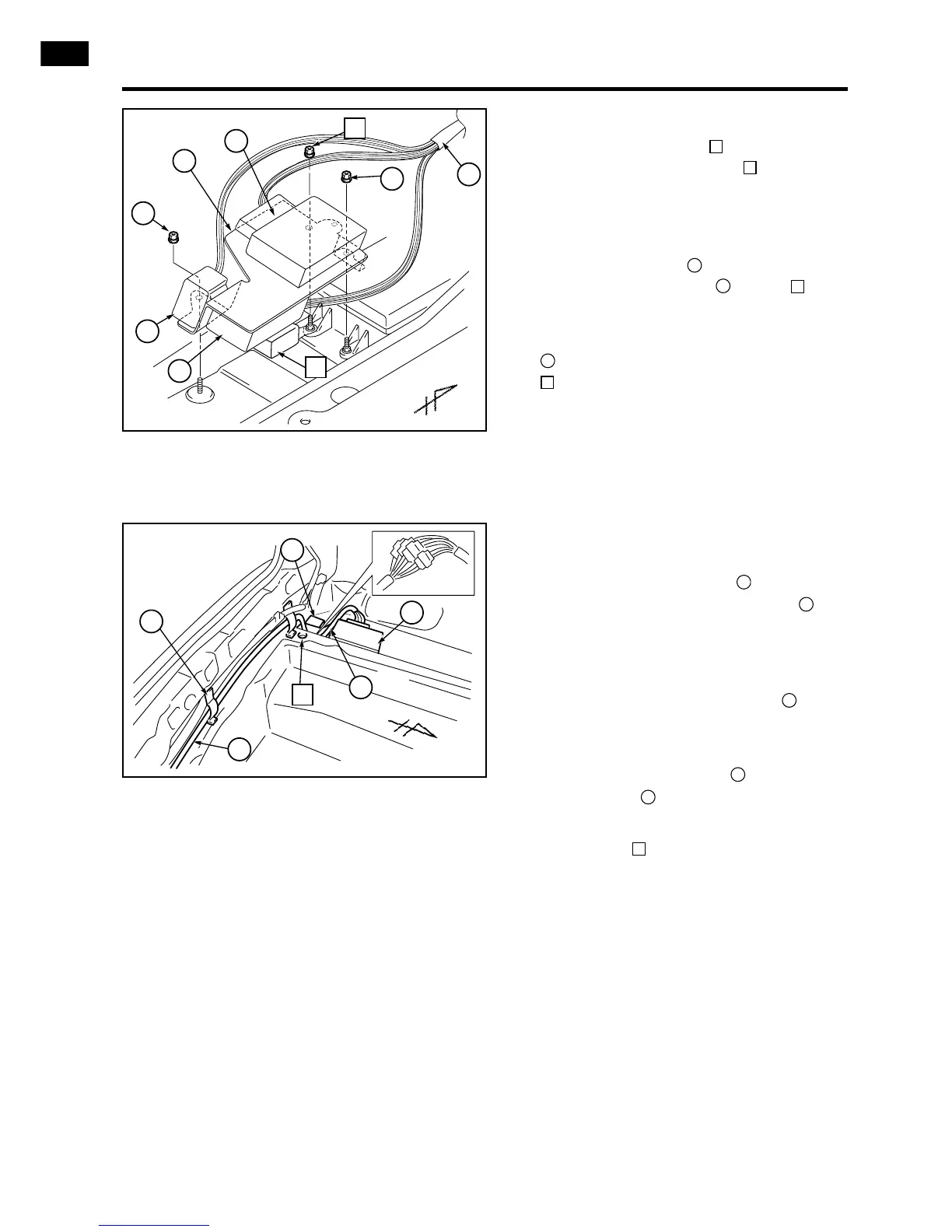

a) Connect the 4 connectors at the end of
the subwire adapter cable to the 4 con-
nectors of the subkit wire harness .
The connectors are put on the bracket
beside the PSE. They should be covered
by urethane tape for avoiding the noise.
b) Route the subkit wire harness along
the rear end of the luggage compart-
ment together with the vehicle harness.
c) Secure the wire harness with strips of
foam (small) .
d) Be careful not to cover the original
thread hole .
29
13
1
1
1
V III
13
1
29
VI
4.11
a) First, remove one nut that is fastened
on the security siren ECU on the rear
left position of the luggage compart-
ment. So, it should be released once
and be used for the telephone ECU.
b) Install the bracket on the three stud
bolts using three nuts (2x) + from
above the security siren bracket and
above the nut for the rear J/B.
: Nut (M6) (2x)
: Nut (M6) (1x)
34
7
34
7
2
30
34
VI
VII
V
2
V III
7
7
V
V III
30
34
