Fuse layout and amperage ratings

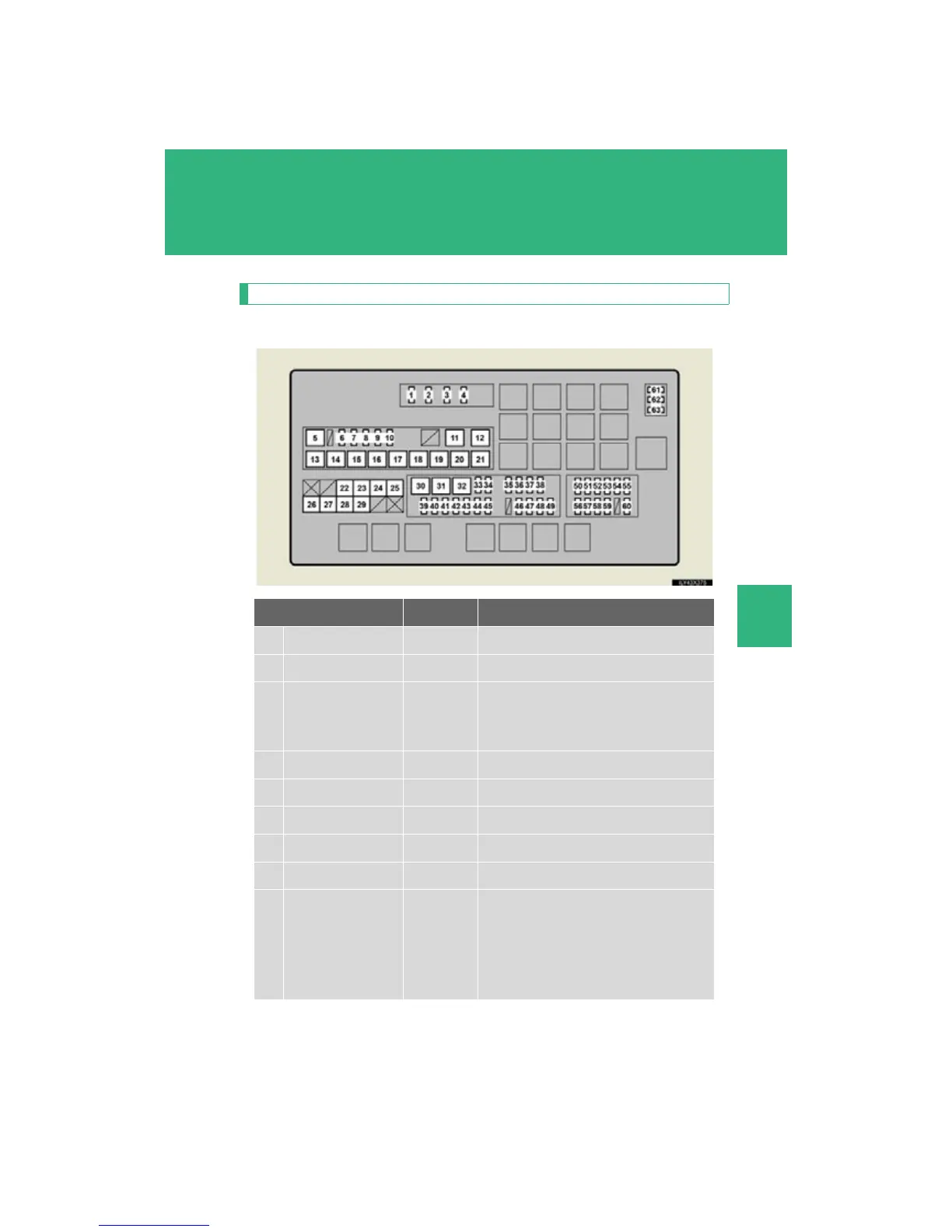

■ Engine compartment (fuse box on the left side)
Fuse Ampere Circuit
1 A/F 15 A A/F heater
2 HORN 10 A Horn
3 EFI MAIN 25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, A/F heater, fuel pump
4 IG2 MAIN 30 A INJ, IGN, MET
5 RR A/C 50 A Blower controller
6 CDS FAN 25 A Condenser fan
7 RR S/HTR 20 A Rear seat heater
8 FR FOG 15 A Front fog lights
9 STOP 15 A
Stoplights, high mounted stoplight,
brake controller, ABS, VSC, main
body ECU, Multiport fuel injection
system/sequential multiport fuel injec-
tion system, trailer
