Lexus NX 200t - Engine Compartment

512
7-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78145U

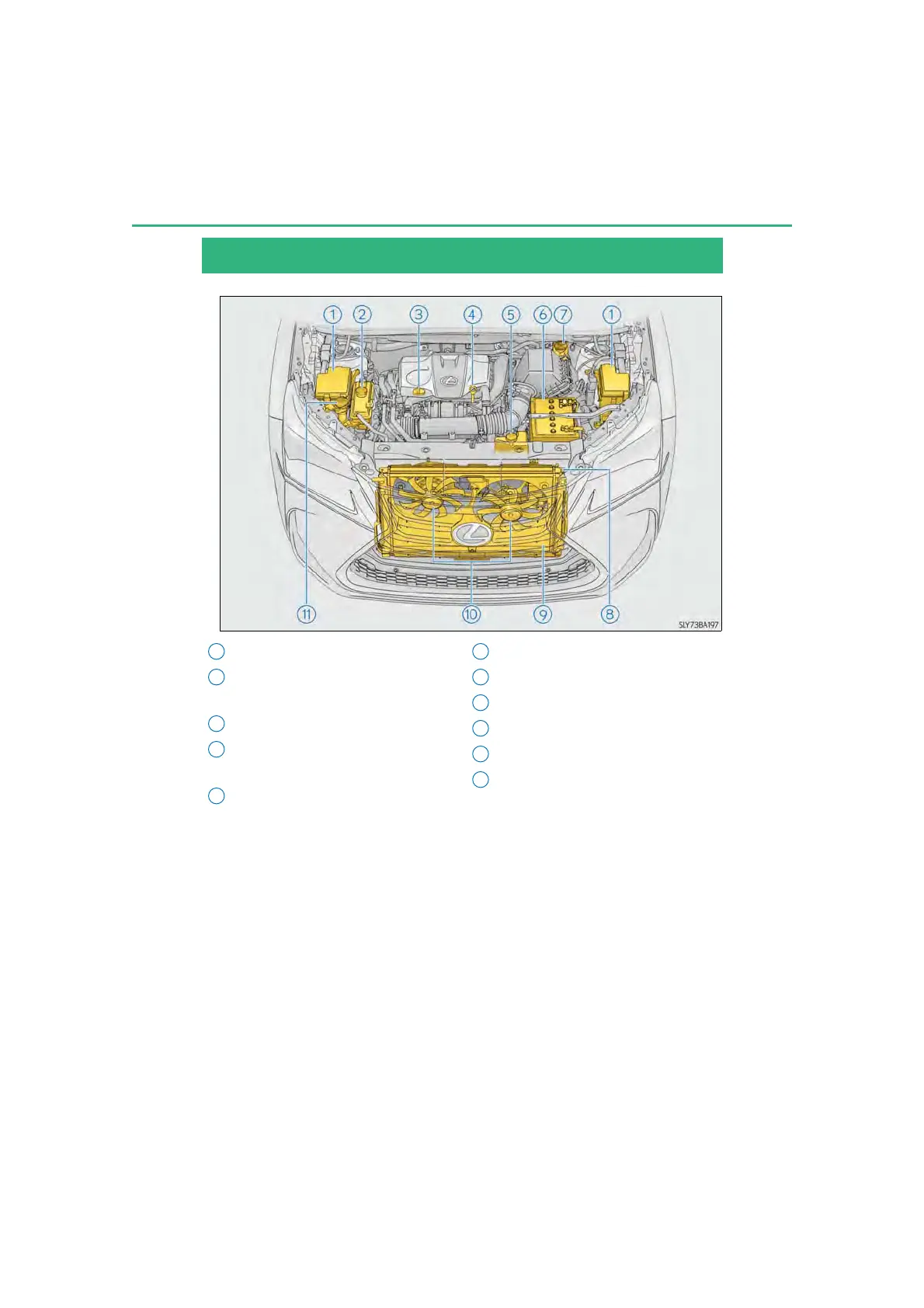

Engine compartment
Fuse box (→P. 542)
Engine coolant reservoir
(→P. 518)
Engine oil filler cap (→P. 515)
Engine oil level dipstick
(→P. 514)
Intercooler coolant reservoir
(→P. 518)
Battery (→P. 521)
Brake fluid reservoir (→P. 520)
Radiator (→P. 519)
Condenser (→P. 519)
Electric cooling fans
Washer fluid tank (→P. 523)
1
2
3
4
5
6
7
8
9
10
11
