Lexus NX 200t User Manual

556
7-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78145U

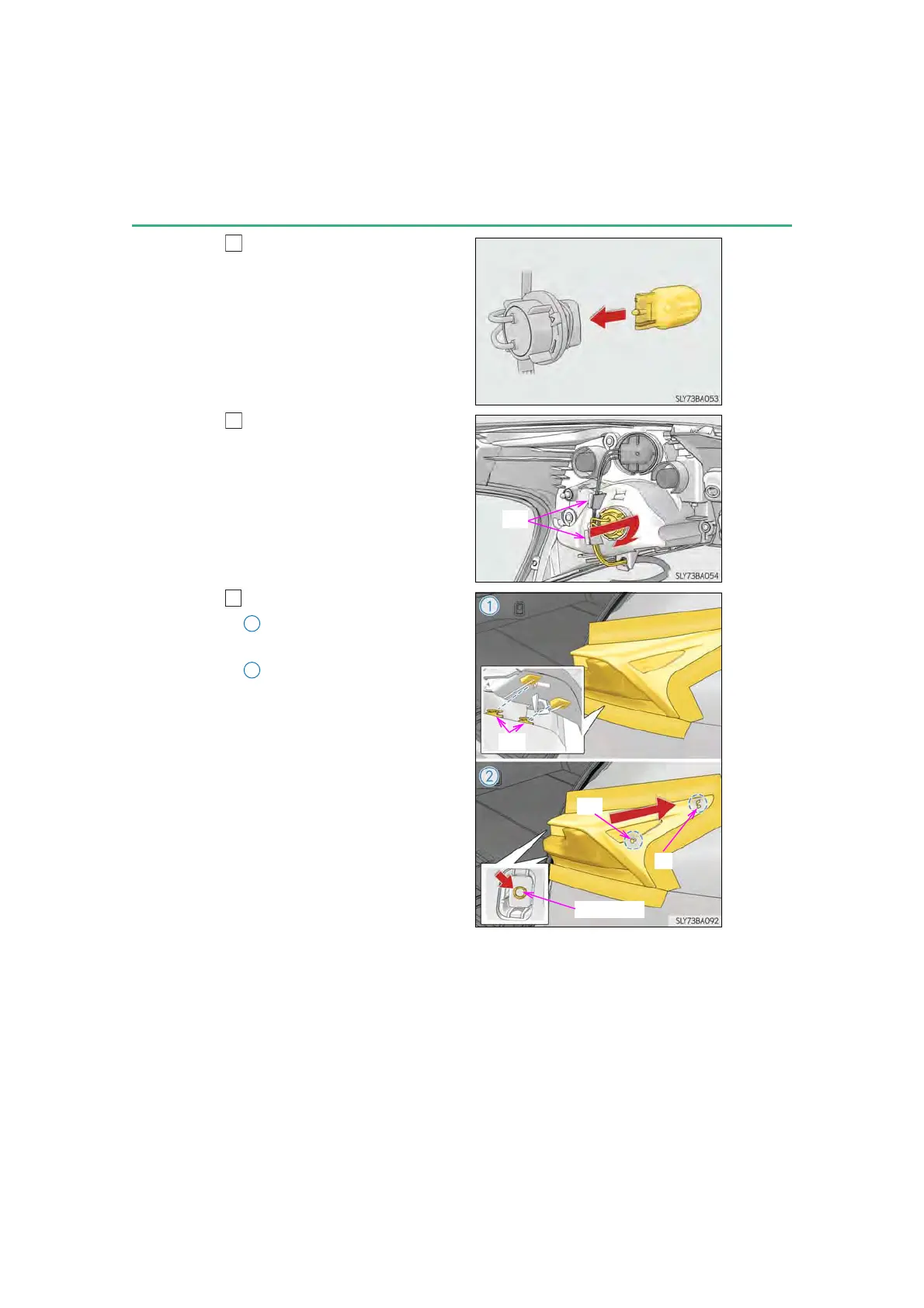

Replace the light bulb.
Turn clockwise and set the bulb
base.
Confirm that cable is fixed to the tab.
Set the light unit.
Align the light unit with the 2
tabs on the rear bumper.
Push the light unit forward
while pushing A.
Confirm that the grommet fits into
the bolt installation hole on the
light unit.
3
7
Tab
3
8
Grommet
A
Tab
Tab
9
1
2
