LG 17MB15T User Manual

A12

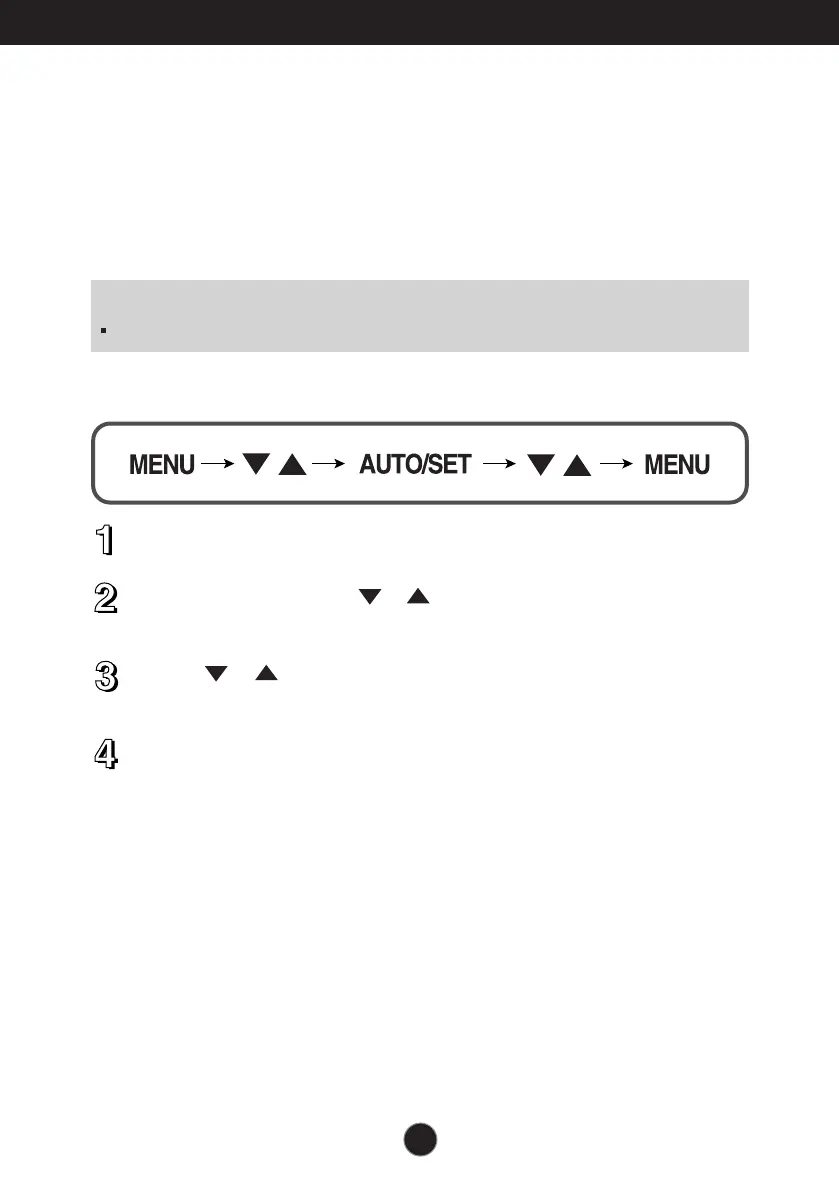

On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the or Buttons to adjust the image to the desired level. Use the
AUTO/SET Button to select other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.

LG 17MB15T Specifications

General

Pixel pitch	0.264 x 0.264 mm
Screen shape	Flat
Display diagonal	17 \
Touchscreen type	Multi-user
Display resolution	1280 x 1024 pixels
Display technology	LED
Touchscreen technology	Capacitive
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	30 - 83 kHz
Certification	UL(cUL)\\r TUV-GS\\r TUV-típus\\r FCC-B, CE\\r EPA
Product color	Black
Cables included	AC, VGA
Full HD	No
Dimensions (W x D x H) with stand	370 x 95 x 315 mm
Tilt angle range	-15 - 68 °
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
Package depth	377 mm
Package width	429 mm
Package height	159 mm
Package weight	4500 g

Weight and Dimensions

Depth (with stand)	95 mm
Width (with stand)	370 mm
Height (with stand)	315 mm
Weight (with stand)	3300 g
Height (without stand)	62 mm
Weight (without stand)	2900 g
