LG 20LS7D - Back Panel Information

PREPARATION
9

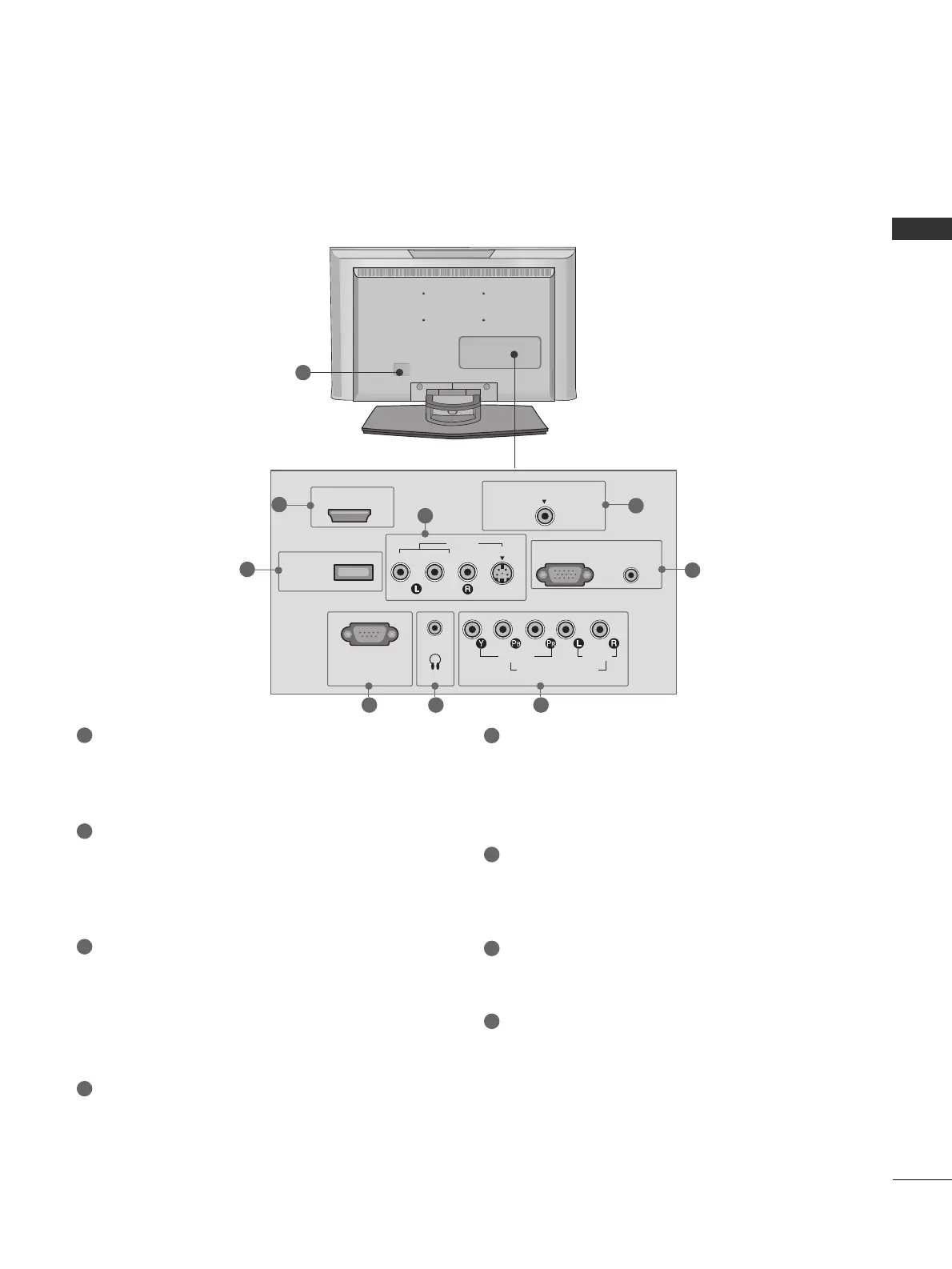

BACK PANEL INFORMATION
SERVICE ONLY
RS-232C IN (SERVICE ONLY) PORT
For service.
HDMI/DVI IN
Connect a HDMI signal to this jack.
Or DVI (Video) signal to this jack with a HDMI to
DVI cable.
AV IN (Audio/Video)
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.
RGB (PC) IN
Connect the output from a PC.
AUDIO IN (RGB/DVI)
Connect the audio from a PC or DTV.
COMPONENT IN
Connect a component video/audio device to
these jacks.
HEADPHONE INPUT
Plug the headphone into the headphone socket.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
2
6
5
7
8
3
4
VIDEO AUDIO
(MONO)
S-VIDEO
ANTENNA/CABLE IN
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
AV IN
H/P
HDMI/DVI IN
VIDEO
AUDIO
COMPONENT IN
1 7 6
1
2
3
5
4
8
■
Here shown may be somewhat different from your TV.
