VCR SETUP
EXTERNAL EQUIPMENT SETUP
When connecting with an antenna
■
To avoid picture noise
(
interference
)
, leave an adequate distance between the VCR and TV.
■
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the
screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty
does not cover the product bearing this phenomenon.
VIDEO AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2

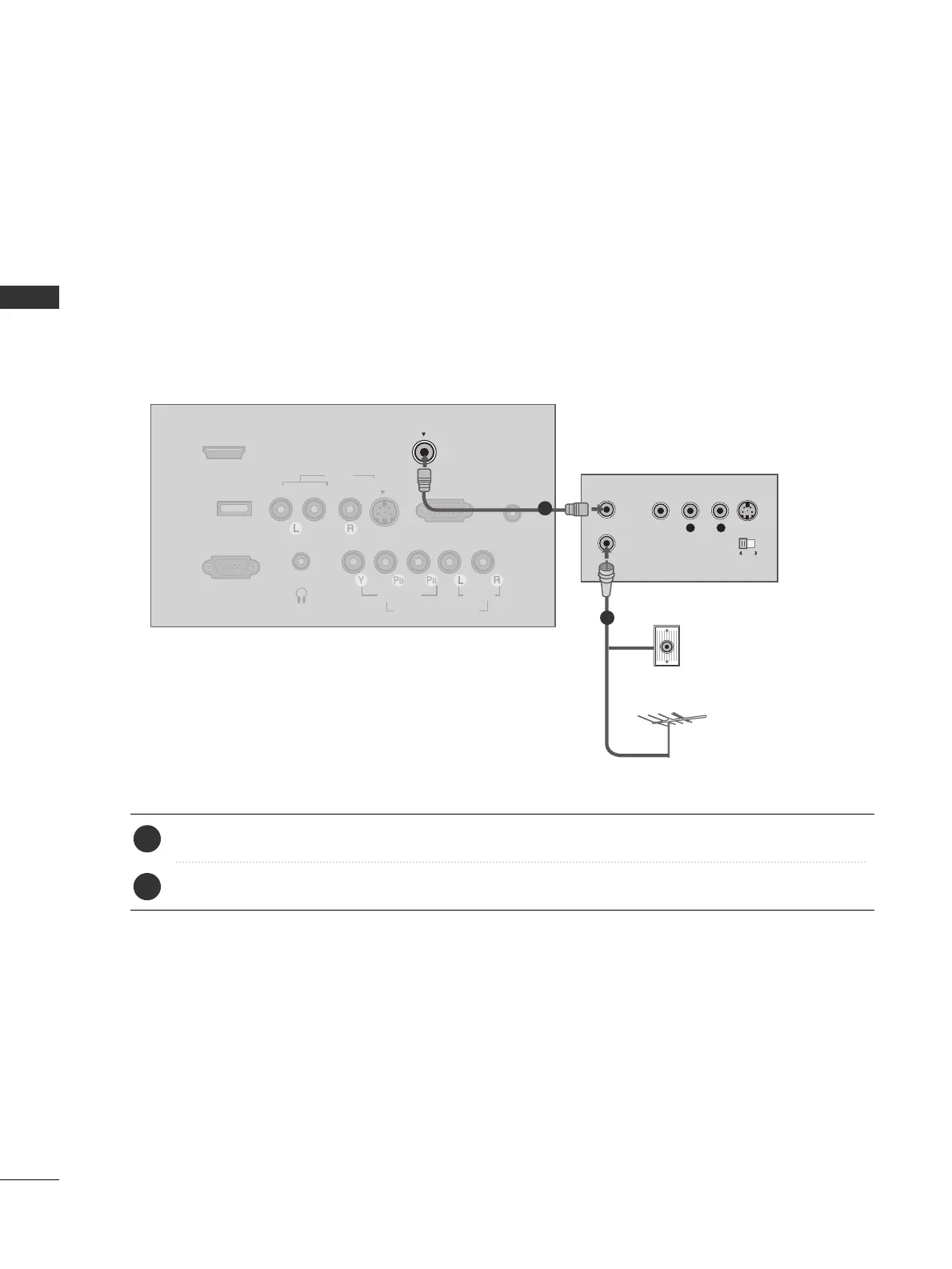

Connect the RF antenna out socket of the VCR to the
AANNTTEENNNNAA//CCAABBLLEE IINN
socket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
1. How to connect
■
Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
■
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
2. How to use
