LG 20LS7D - PC Connection Setup

EXTERNAL EQUIPMENT SETUP
25
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

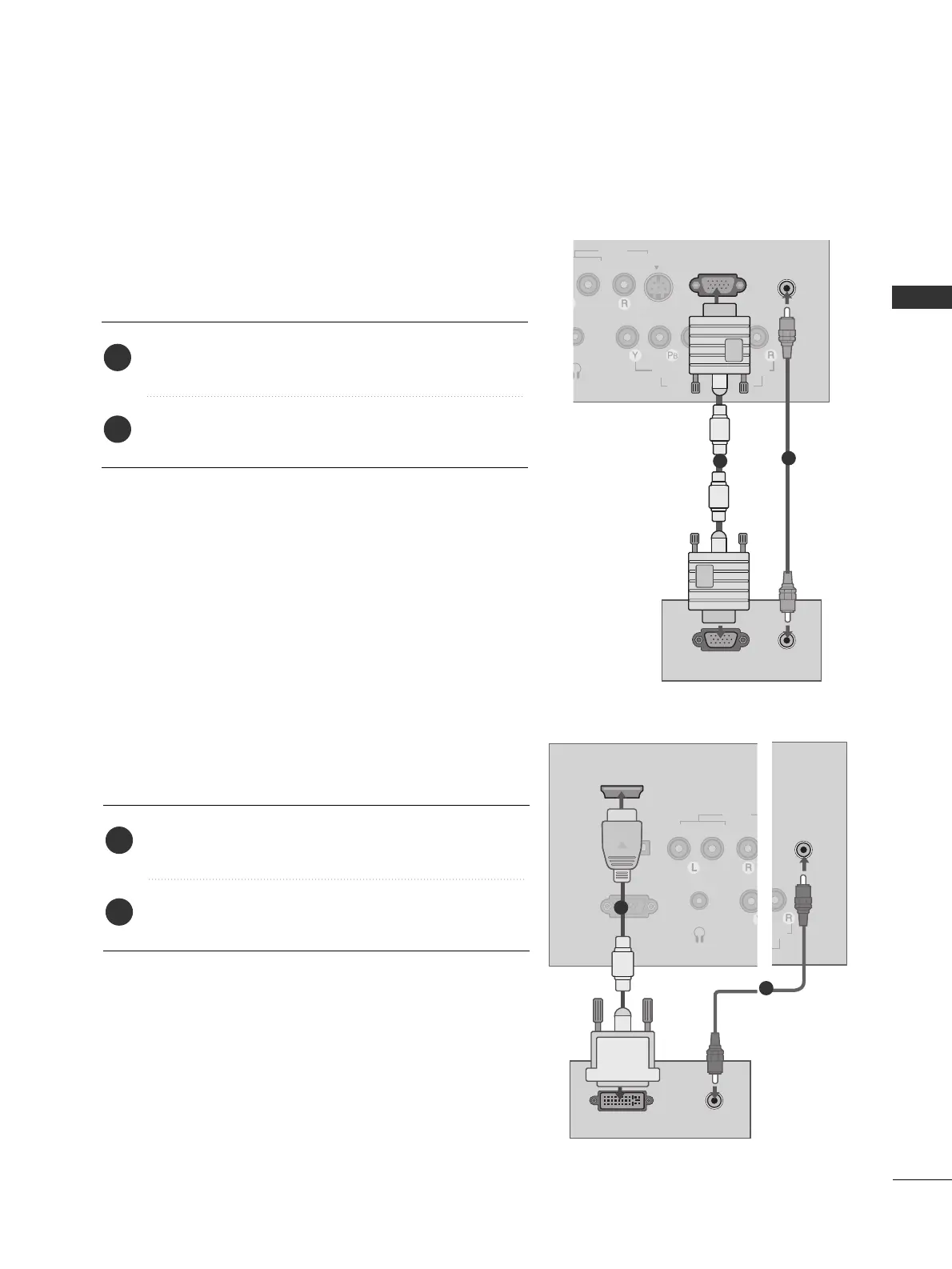

When connecting D-sub 15pin cable
AUDIO
(MONO)
S-VIDEO
RGB (PC) IN
AUDIO IN
(RGB/DVI)
AV IN
H/P
VIDEO
AUDIO
COMPONENT IN
AUDIO
RGB OUTPUT
Connect the RGB output of the PC to the
RRGGBB
((
PP CC
))
II NN
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO IINN
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
2. How to use
■
Turn on the PC and the TV.
■
Select
RRGGBB--PPCC
input source by using the
IINNPPUUTT
button
on the remote control.
2
1
1
2
When connecting HDMI to DVI cable
Connect the DVI output of the PC to the
HHDDMMII//DDVVII
IINN
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO IINN
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
2. How to use
■
Turn on the PC and the TV.
■
Select
HHDDMMII
input source by using the
IINNPPUUTT
button on
the remote control.
2
1
VIDEO AUDIO
(MONO)
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
DVI-PC OUTPUT
AUDIO
AUDIO IN
(RGB/DVI)
DIO
