EXTERNAL EQUIPMENT SETUP
17
HD RECEIVER SETUP
EXTERNAL EQUIPMENT SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown
below.
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
IDEO AUDIO
(MONO)
S-VIDEO
RGB (PC) IN
AUDIO IN
(RGB/DVI)
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
Y L RPB PR

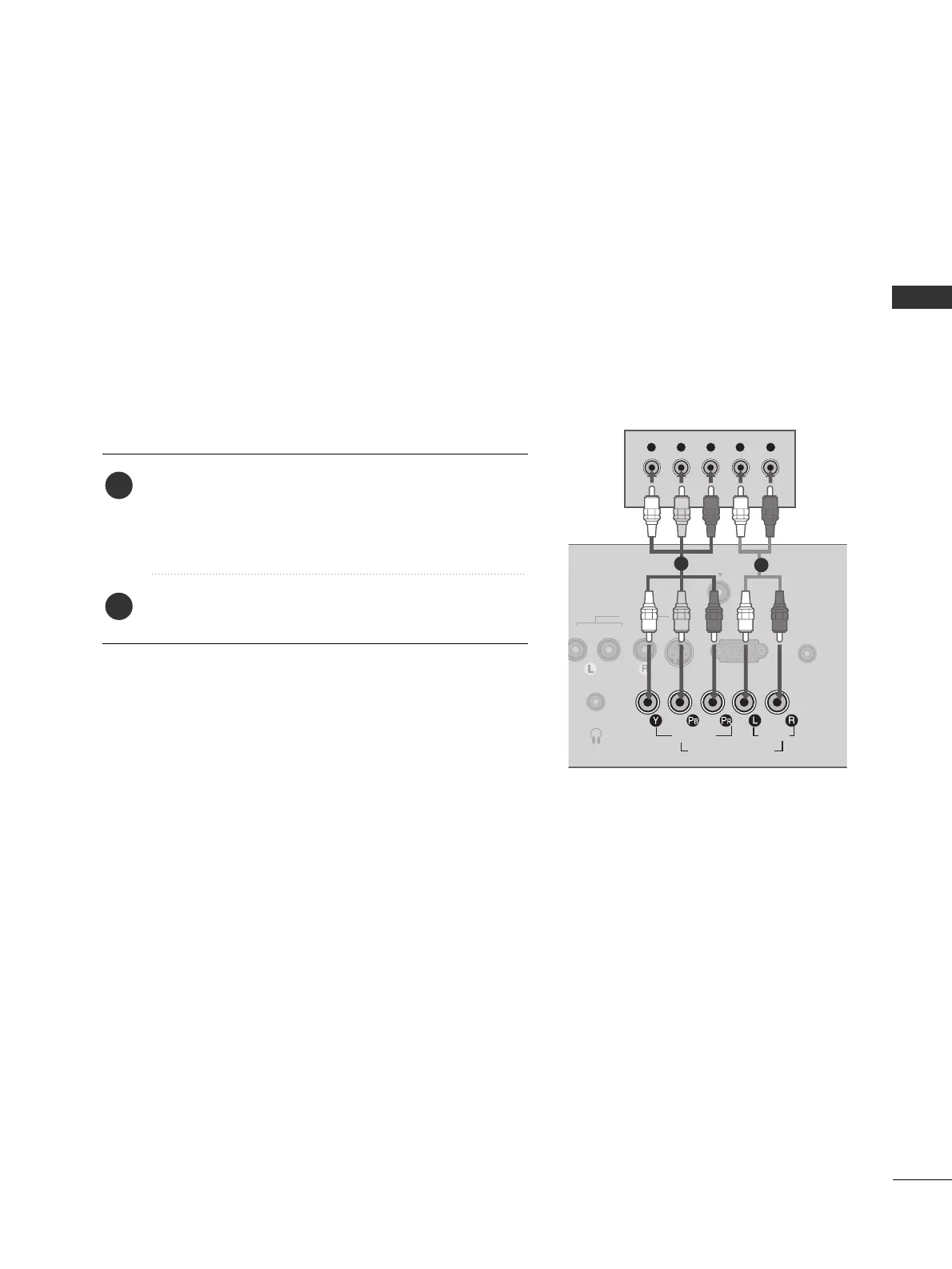

When connecting Component cable
1
2
1. How to connect
Connect the video outputs
(
Y, P
B, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and P
R = red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box. operation
)
■
Select
CCoommppoonneenntt
input source by using the
IINNPPUUTT
button on the remote control.
