LG 20LS7D - Connecting HDMI to DVI Cable

EXTERNAL EQUIPMENT SETUP
19

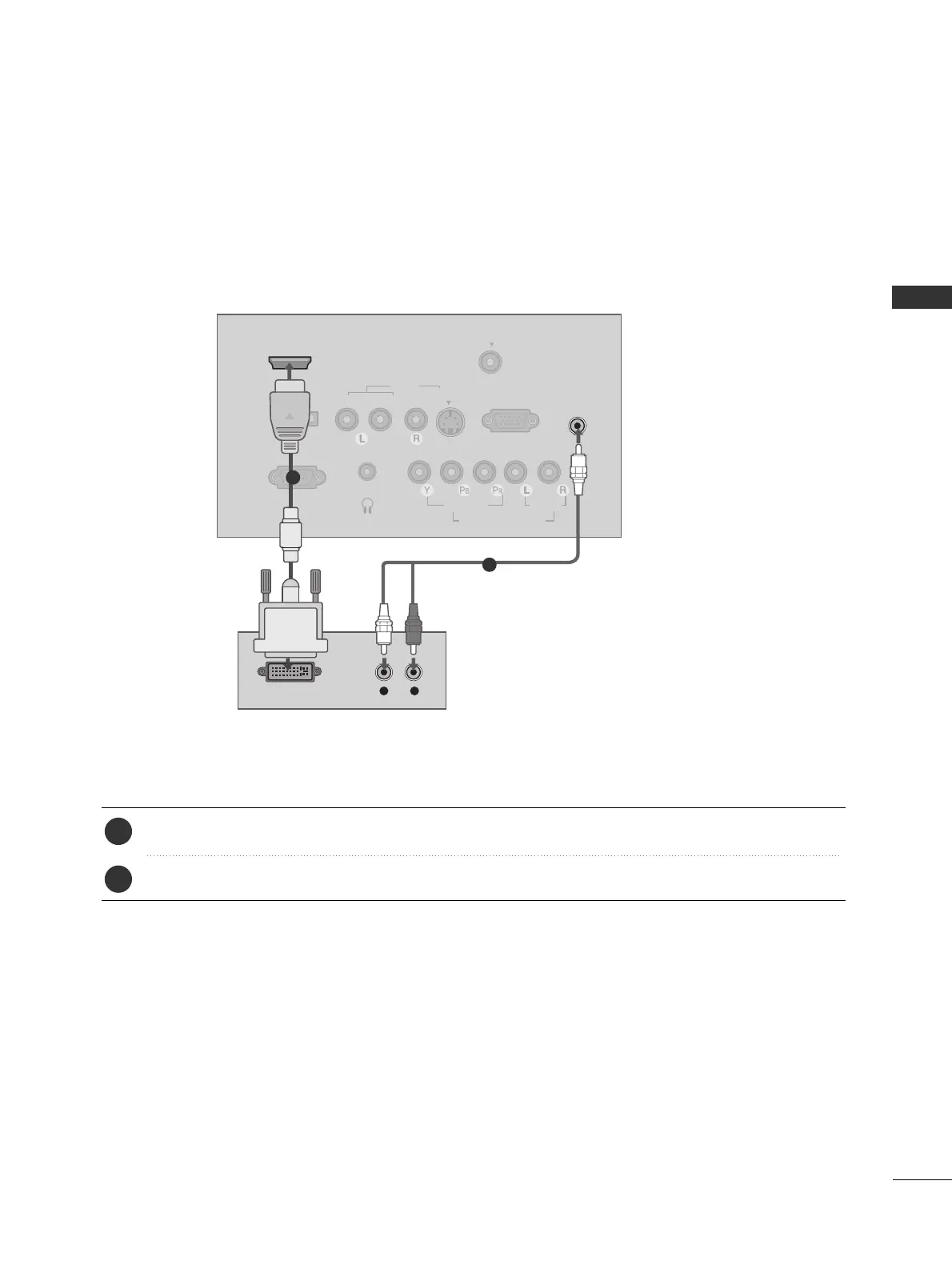

When connecting HDMI to DVI cable
VIDEO AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R
DVI-DTV OUTPUT
Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO IINN
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII
input source by using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1
2
