CONNECTIONS & SETUP
19
GG
In standby mode, these ports do not work.
NOTE
!
ANTENNA LOOP THROUGH SOCKET
-
42PC1DV, 32/37/42LC2D only
The TV has a special signal output capability which allows you to hook up the second TV.
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
VIDEO
AUDIO
MONO
( )
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 1
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
REMOTE
CONTROL IN
ANTENNAANTENNA
OUTOUT
ANTENNAANTENNA
ININ

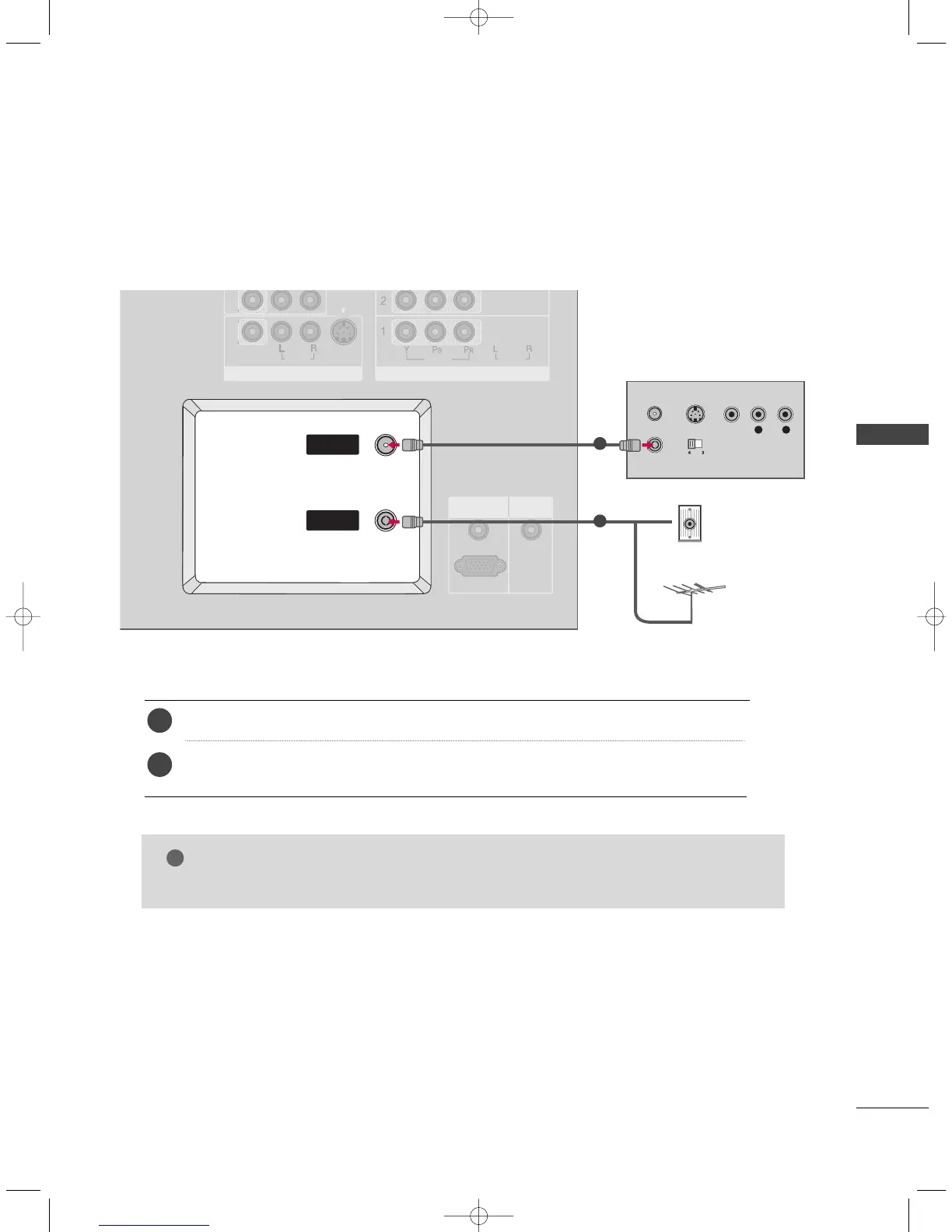

Connect the wall antenna socket or outdoor antenna to the TV’s
AANNTTEENNNNAA IINN
socket.
Connect a second TV’s antenna socket to the TV’s
AANNTTEENNNNAA OOUUTT
socket.
1. How to connect
2
1
1
2
Wall Jack
Antenna
