CONNECTIONS & SETUP
22
CONNECTIONS & SETUP
When connecting HDMI to DVI cable
ANTENNA
OUT
ANTENNA
IN
VIDEO AUDIO
COMPONENT IN
ANTENNA
OUT
ANTENNA
IN
HDMI/DVI IN
L R
DIGITAL AUDIO
OUT
OPTICAL
RS-232C IN
(CONTROL & SERVICE)
ANTENNA
OUT
ANTENNAANTENNA
ININ
HDMI/DVI INHDMI/DVI IN
DVI-DTV OUTPUT
ANTENNA
OUT
ANTENNA
IN
REM
CONTR
RGB INRGB IN
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
RGB (PC/DTV)

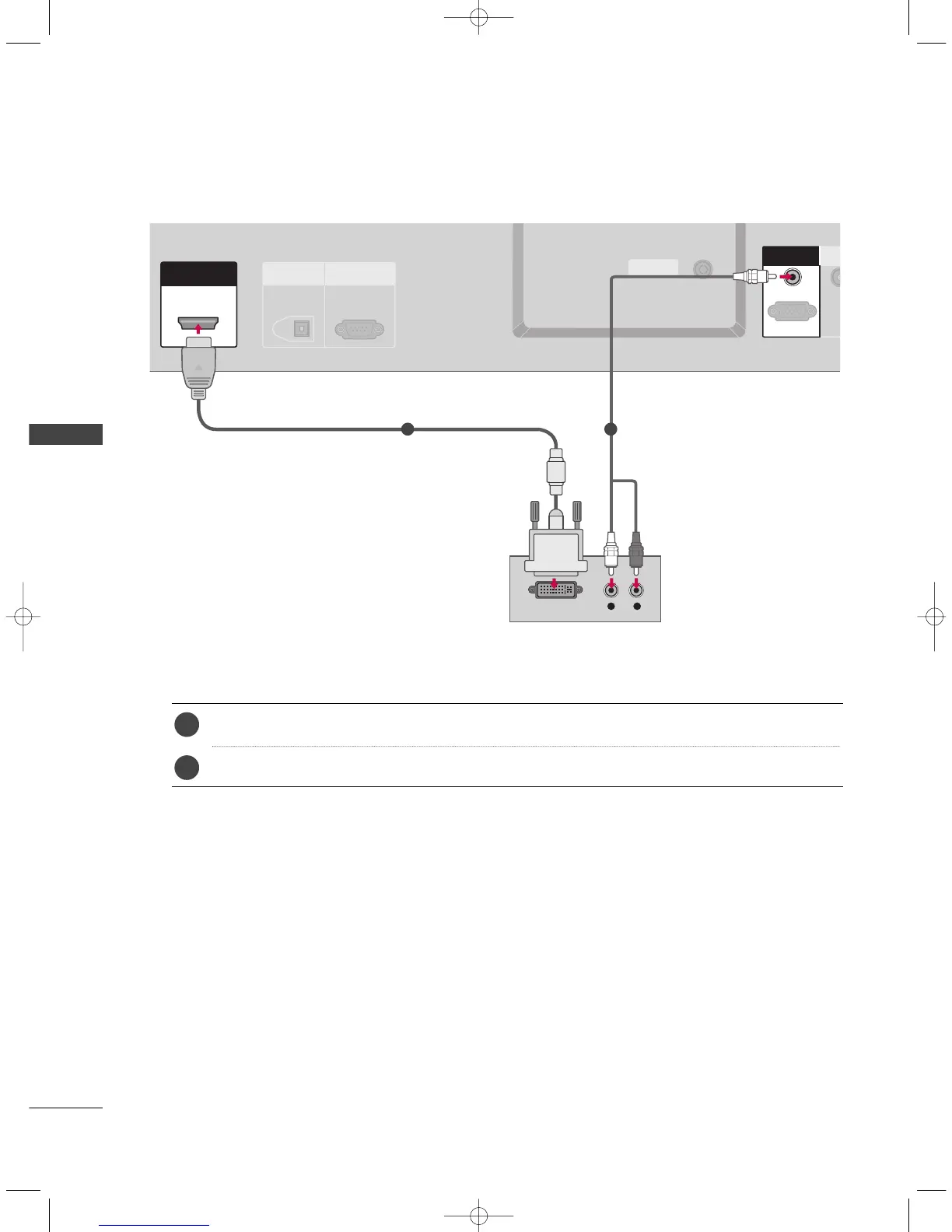

Connect the DVI output of the digital set-top box to the
HHDDMMII //DDVVII IINN
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the set.
1. How to connect
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII//DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1
2
