EXTERNAL EQUIPMENT SETUP
18
EXTERNAL EQUIPMENT SETUP
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
This part of EXTERNAL EQUIPMENT SETUP mainly use pictures for the LCD TV models.

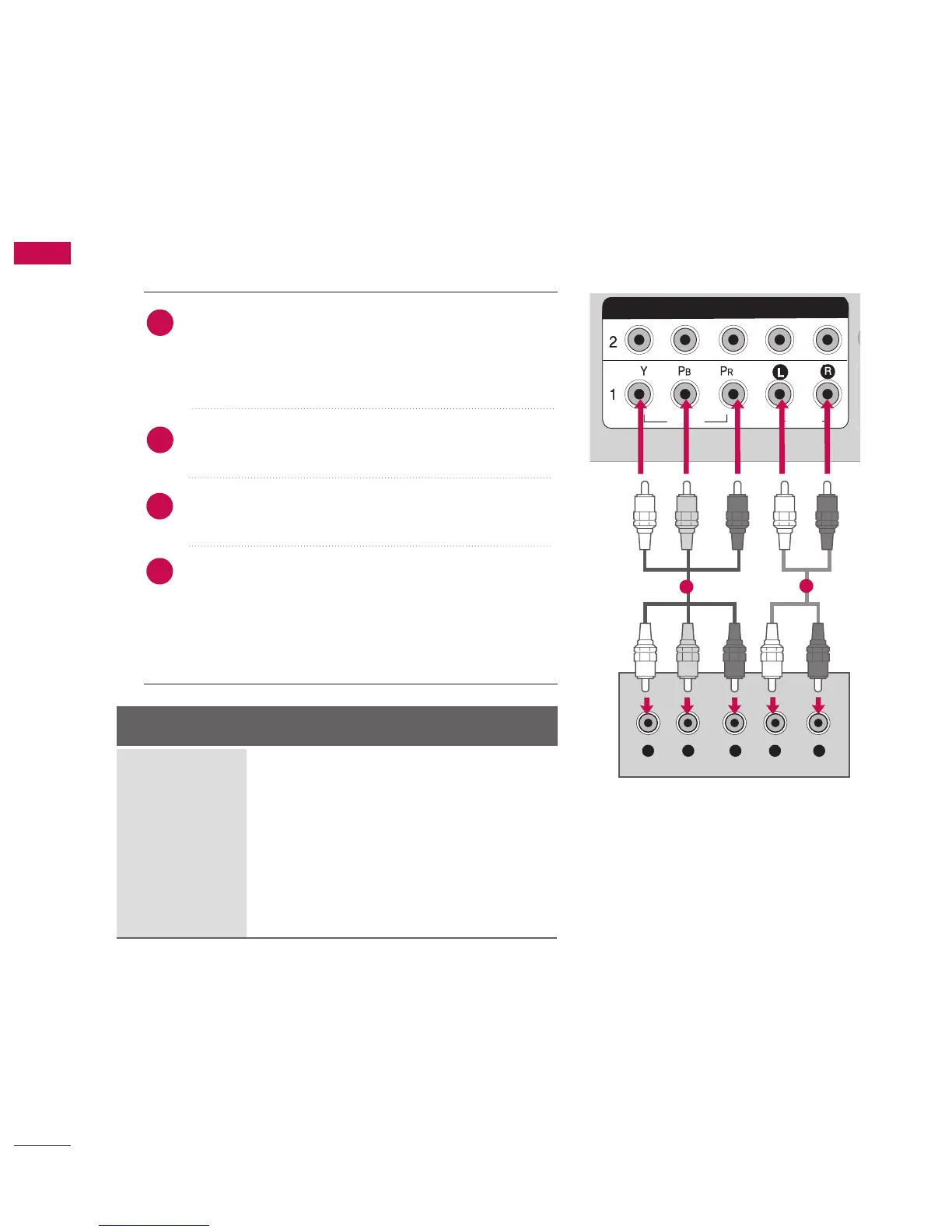

HD RECEIVER SETUP
When connecting with a Component cables
Connect the video outputs
(
Y, P
B, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks on
the set. Match the jack colours.
(Y = green, P
B = blue, and PR = red)
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the set.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
CCoommppoonneenntt 11
input source using the
IINNPPUUTT
button on the remote control.
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCoommppoonneenntt 22
input source.
2
1
Signal
480i
480p
576i
576p
720p
108 0 i
108 0 p
Component 1/2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HDMI/DVI 1, 2, 3
No
Yes
No
Yes
Yes
Yes
Yes
3
4
RGB IN
RGB (PC)
DIGITAL
AUDIO OUT
COMPONENT INCOMPONENT IN
VIDEOVIDEO AUDIOAUDIO
Y L RPB PR
COMPONENT IN
VIDEO AUDIO
DIGITAL
AUDIO OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT IN
VIDEO AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO OUT
HDMI/DVI IN
COMPONENT IN
VIDEO AUDIO
DIGITAL
AUDIO OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
1
2
