CONTROLLING THE MULTIPLE PRODUCT
CONTROLLING THE MULTIPLE PRODUCT
y
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 99 without being duplicated.
Connecting the Cable

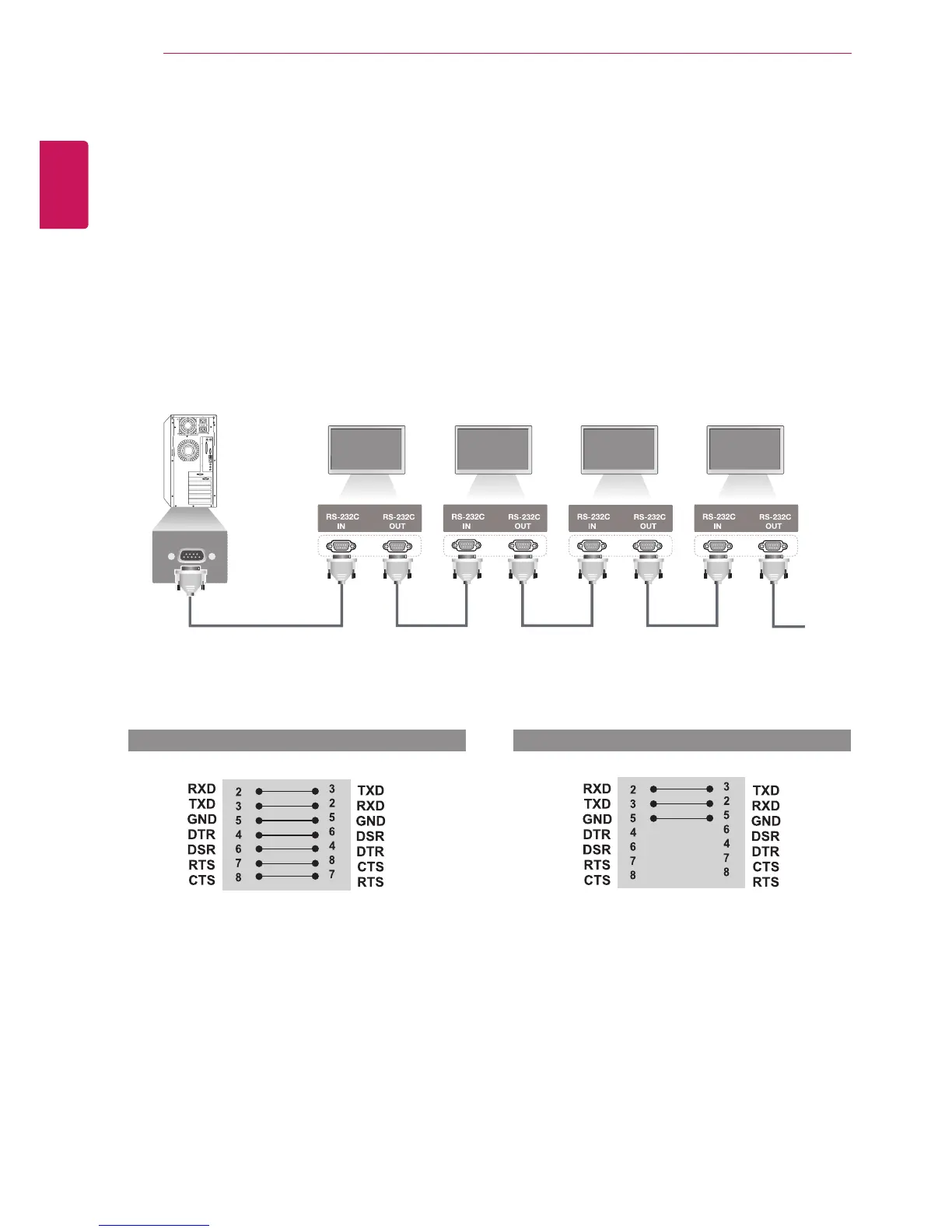

Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Communication Parameter
RS-232C Configurations
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
y
Baud Rate: 9600 buad Rate (UART)
y
Data Length: 8 bit
y
Parity Bit: None
y
Stop Bit: 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
7-Wire Configurations (Standard RS-232C cable)
3-Wire Configurations (Not Standard)
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
RS-232C Cable (not included)
