59
ENG
ENGLISH
MAKING CONNECTIONS

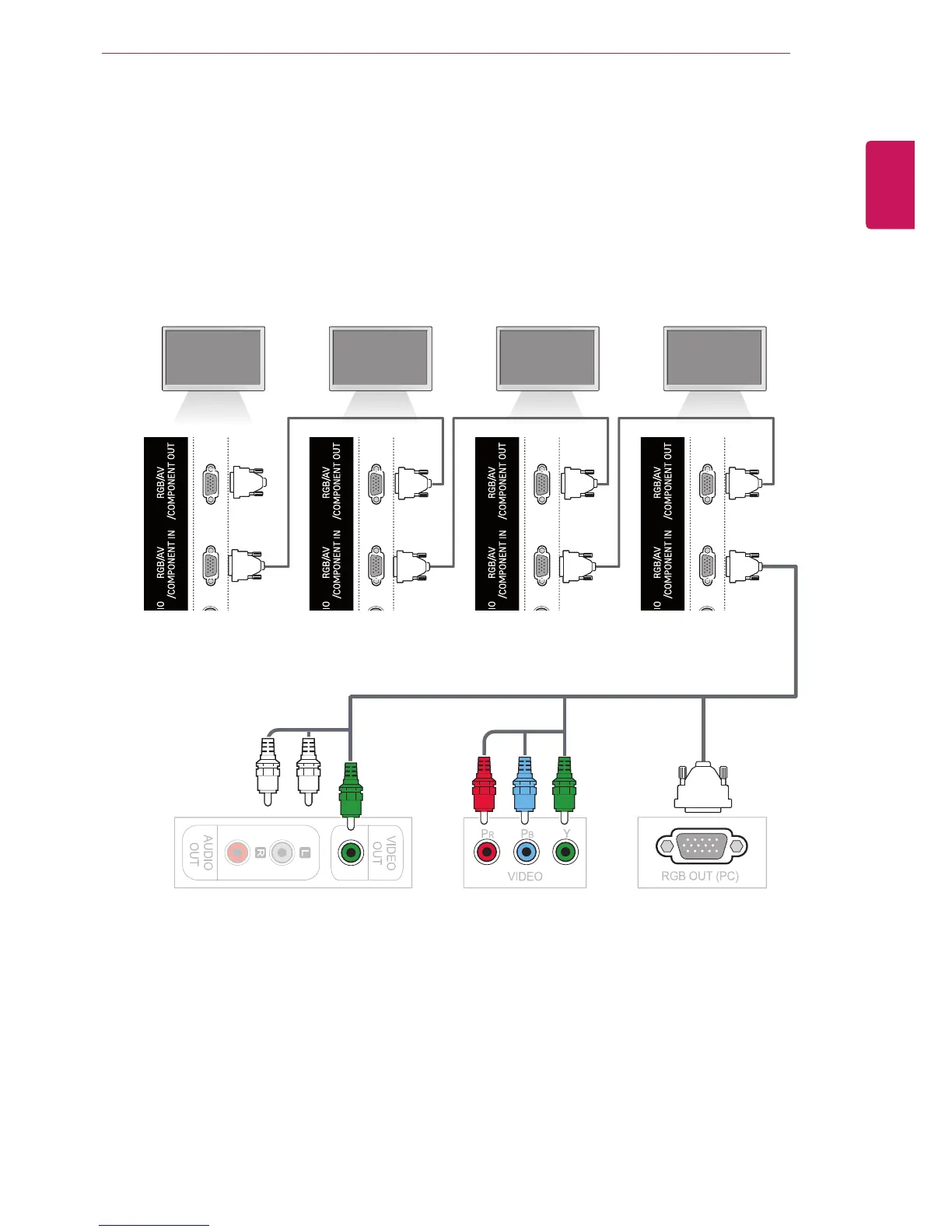

Daisy Chain Monitors
Use this function to share the RGB or DVI video signal with other monitors without having to use a separate
signal splitter box.
To use different products connected to each other Connect one end of the signal input cable (15-pin D-Sub
or DVI Signal Cable) to the RGB OUT or DVI OUT connector of product 1 and connect the other end to the
RGB IN or DVI IN connector of other products
RGB
Mode
Component
Mode
AV(CVBS)
Mode
15-pin D-Sub Signal Cable
(Max 3m)
Monitor 4 Monitor 3 Monitor 2 Monitor 1
To Next Page
